| High consistency. Low internal resistance ensures good consistency in battery discharge |
$ 1,445
| Product Model | ES-BOX36 MAX |
|---|---|
| Nominal Energy | 16kwh |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 314Ah |
| Cell Type | LFP |
| Standard Charge Voltage | 56V |
| Max Discharge Current | 200A |
| Discharge Cut-Off Voltage | 44.8V |
| Parallels Function | Support 16 Units In Parallels |
| Communication Interface | RS485、RS232、CAN(Optional) |
| Cycle Life * | ≥6000 Cycles(80%DOD) |
| Charge Temperature Range | 0~65℃ |
| DischargeTemperature Range | -20~65°C |
| Certification | UL/TUVIEC62619/EMC/CE/MSDS/UN38.3 |
| Dimensions | 880*460*235mm |
| Weight | 135Kg |
| Installation Method | Wall Mounted/Floor Standing |
| WiFi Function | Yes, with wi-Fi |
| Waterproof grade | IP 20 |
| Category | Details |
|---|---|
| Features | – 16kWh lithium-ion battery capacity – 51.2V, 314Ah rating – Wall-mounted, space-saving design – Advanced Battery Management System (BMS) – Modular and expandable for larger setups – High cycle life and deep discharge capability |
| Benefits | – Reliable backup power for home and small businesses – Maximizes solar energy usage and reduces electricity bills – Easy installation on walls, saving floor space – Long lifespan with low maintenance – Safe and efficient energy storage |
| Specifications | – Battery Type: Lithium-ion – Capacity: 16kWh – Voltage: 51.2V – Current: 314Ah – Cycle Life: 6000+ cycles at 80% DOD – Operating Temperature: -10°C to 50°C – Communication: CAN/RS485 compatible – Application: Home/small business energy storage, solar integration |
| Feature / Specification | Genixgreen 16kWh Lithium-ion | Typical Lead-Acid Battery (16kWh) |
|---|---|---|
| Battery Type | Lithium-ion | Lead-acid |
| Capacity | 16kWh | 16kWh |
| Cycle Life | 6000+ cycles at 80% DOD | 800–1200 cycles at 50% DOD |
| Depth of Discharge (DOD) | Up to 80% | 50% |
| Efficiency | 95–98% | 70–85% |
| Maintenance | Low, mostly monitoring | High, requires water topping and cleaning |
| Weight | Lighter, compact | Heavier, bulkier |
| Environmental Impact | Eco-friendly, recyclable | Contains toxic lead, less eco-friendly |
| Installation | Wall-mounted, easy | Heavier, floor placement recommended |
| Cost | Higher initial cost | Lower upfront cost |
| Backup Duration | Longer due to deeper discharge | Shorter due to limited DOD |

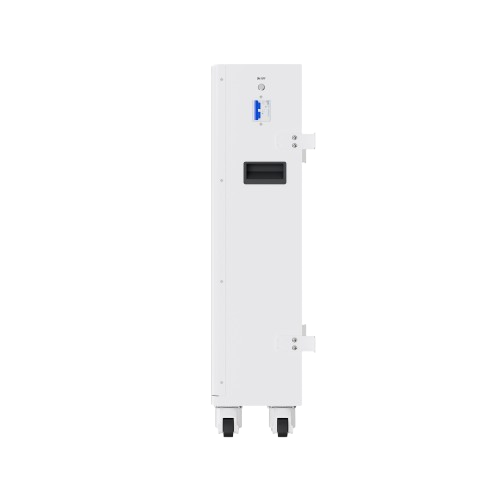

The Genixgreen 16kWh ES-BOX36 MAX is a high-capacity, wall-mounted lithium-ion battery system designed for residential and small business energy storage. With a voltage rating of 51.2V and 314Ah capacity, it provides substantial backup energy, making it suitable for homes with higher electricity demands or small commercial installations. Its wall-mounted form factor saves floor space and allows for a clean and organized installation.
Equipped with a sophisticated Genixgreen Battery Management System (BMS), this battery ensures safe operation, balancing cells, preventing overcharging or deep discharging, and monitoring temperature to extend battery lifespan. Its modular design allows multiple Genixgreen lithium Battery units to be connected for expanded energy storage, making it a flexible choice for growing energy needs. The ES-BOX36 MAX supports both on-grid and off-grid solar applications, allowing users to maximize solar energy usage and reduce dependency on the electricity grid. Considering the Genixgreen Battery price, this system offers a cost-effective solution for homeowners looking to invest in reliable and efficient solar energy storage.
Key benefits include reliable backup power, reduced energy bills, and eco-friendly operation. Its lithium-ion technology ensures higher efficiency compared to traditional lead-acid batteries, while requiring minimal maintenance. The system delivers long-term performance, with thousands of cycles and deep discharge capability, ensuring stored energy is available when needed.
For homeowners and small businesses, the ES-BOX36 MAX provides a balance of high capacity, safety, and flexibility. Its easy wall-mounted installation, long lifespan, and intelligent management make it a smart choice for sustainable energy storage, supporting energy independence and contributing to a greener lifestyle.
