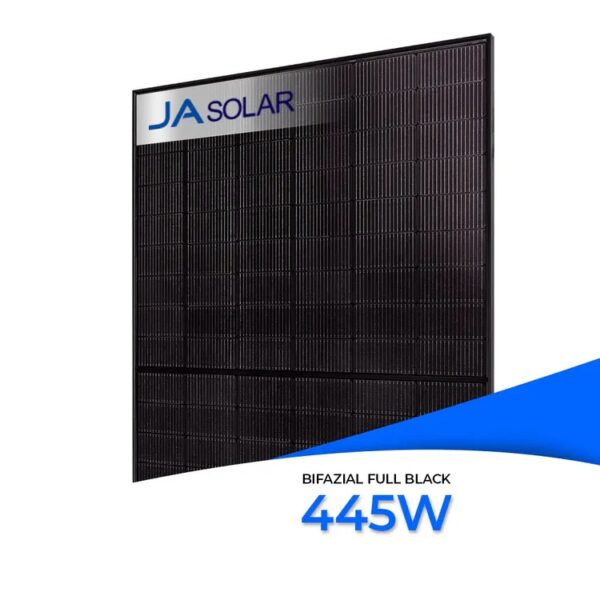

Ja Solar 445W Bifazial Glas-Glas Full Black JAM54D41 (Staffelpreis)

Product features:

• Higher power generation for improved electricity production costs
• Better performance in low light thanks to N-Type technology – higher energy yields even on cloudy days or in the morning and evening hours.
• Better response in low light
• Improved temperature coefficient
• Including cable (approx. 120 cm) and MC4 EVO2 connector system
• Sturdy anodized black aluminum frame
• Glass thickness: 1.6 mm (both sides)

Technical details:

• Type: JAM54D41-445/LB
• Dimensions (H x L x W): 30 x 1762 x 1134 mm
• Weight: 22.0 kg
• Number of cells: 108 (18 lengthwise x 6 crosswise)
• Cable length: 120 cm
• Rated power Pmax: 445 watts peak
• Power tolerance: 0 to +5 watts
• Cell width: 182 mm, cell length: 91 mm
• Cell type: monocrystalline
• Frame type: Standard
• Nominal voltage Umpp: 33.87 V, Nominal current Impp: 13.14 A
• Maximum system voltage: 1500 V
• Short-circuit current Isc: 14.40 A
• Bifacial: Yes, Connector type: MC4 Evo 2
• Open circuit voltage Uoc: 39.10 V
• Temperature coefficient Isc: 0.046 (%/K)
• Temperature coefficient Pmpp: -0.30 (%/K)
• Temperature coefficient Uoc: -0.26 (%/K)
• Certificate 2: Protection Class 2
• Frame color: Black
