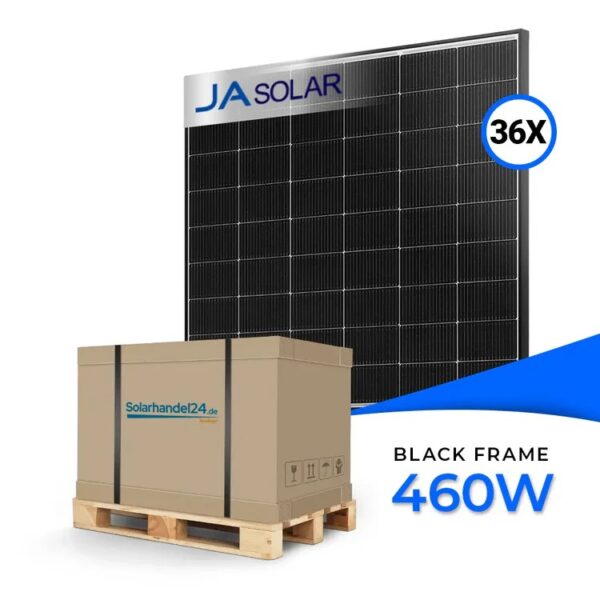

Ja Solar 460W Bifazial Glas-Glas Black Frame JAM54D40 – Palettenpreis (36 Stk.)

Product advantages

• Bifacial n-type cell technology with up to 25% higher yield through backside gain
• Up to 23.0% module efficiency for maximum space utilization
• Lower degradation: only 1% in the first year, then 0.4% annually
• Low power loss when shaded due to half-cell technology
• Excellent performance in low light (diffuse irradiation)
• Excellent temperature coefficients for hot climates
• High mechanical load capacity: 5400 Pa front / 2400 Pa rear
• Better behavior at low light intensity
• Black framed look for attractive design

Technical features

• Module type: JAM54D40-LB (460W), glass-glass, n-type, bifacial
• Dimensions: 1762 × 1134 × 30 mm, weight: 22 kg
• Connection: QC 4.10-35/MC4-EVO2, cable length 1200 mm
• Cells: 108 half-cells (18×6), n-bifacial
• Front & back glass: 1.6 mm tempered glass
• Max. system voltage: 1500 V DC
• Temperature range: -40 °C to +85 °C
• Operating temperature coefficient (Pmax): -0.29%/°C
• Bifacial factor: 80 ± 5%

compatibility

The module is suitable for all commercially available string inverters such as:

• Sungrow SH10RT / SH15T
• Fronius Symo GEN24 10.0
• SMA Sunny Tripower Smart Energy
• Kostal Plenticore G3
  In combination with these hybrid inverters, it can be optimally integrated into storage solutions such as the Sungrow SBR or GoodWe Lynx Home F Plus.
