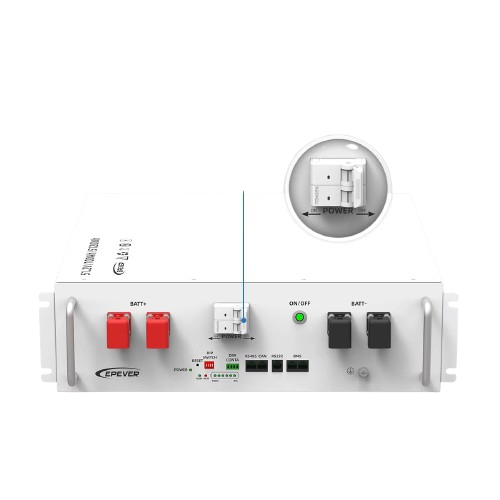

| EPEVER® Lithium Battery LiFePO4 Batteries 51.2V 205Ah – integrated BMS, A-Grade LiFePO4-Cells, Rack-mountabl |
This 51.2V 205Ah lithium battery, certified to EU standards, features a durable ABS case and delivers a continuous discharge current of 100A. It offers over 3000 charge cycles, ensuring an exceptionally long-lasting performance. With an IP20 protection rating, this system is ideally suited for use in solar panel battery banks, home battery storage, and other residential solar applications. It also provides reliable power for RVs, camping equipment, marine applications, and backup power systems.
Seamless communication via RS485, CAN, and RS232 interfaces allows for flexible and scalable system integration. These interfaces ensure stable data transmission and make it easy to expand the system to include up to 8 batteries in a parallel connection. Important certifications such as UN38.3 and emphasize the safety and reliability of this model.
The LFP10.5KWH51.2V-P20R1GF30 battery model is an excellent choice for energy storage solutions in industrial, commercial, and residential applications. It is designed to meet the demands of modern energy systems, combining high efficiency, long lifespan, and dependable performance.
Special Features
| Manufacturer model | LFP10.5KWH51.2V-P20R1GF30 |
| EAN Code | 4260558576334 |
| Article Number | 4951105-EPEVER |
| Rated Voltage | 51.2V |
| Rated Capacity(AH) | 205Ah |
| Rated Energy(WH) | 10496Wh |
| Pack Mode | 16S1P |
| Continuous Discharge Current(A) | 100A |
| Charge Cut-off Voltage(V) | 57.6V |
| Discharge Cut-off Voltage(V) | 41.6V |
| Max.Charge Current(A) | 150A |
| Max.Discharge Current(A) | 200A |
| Peak Discharge Current(A) | 220A@5S |
| Recommend Discharge Current(A) | 100A |
| Recommend Discharge Deapth(%) | 80% |
| Cycle Life | ≥3000 cycles (25 °C, 0.5 °C) 80 % DOD |
| Communication | RS485 CAN RS232 |
| Display | LED |
| Operating Temperature | Discharge: -20°C ~ +60°C, Charge: 0°C ~ +55°C |
| Storage Temperature(℃) | 5℃ ~ +35℃ |
| Recommend Storage Humidity | 60% ± 20% RH |
| Battery terminal clamp | M6 |
| Dimensions(L*B*H) | 586 * 550 * 232mm |
| Weight(kg) | 90.1 ± 0.5 |
| Certificate | UN38.3. MSDS |
| Protection Class | IP20 |
