| Nonimal Voltage:51.2V
Voltage Working Range:40V~57.6V |
$ 572
| Inverter Parameter – (Optional) | ||
| Inverter Power | 5000W | 5000W |
| Rated AC Input & Output Voltage | 220/230Vac | 110/120Vac |
| AC Output Frequency Range | 50Hz ± 0.3Hz / 60Hz ± 0.3Hz | |
| AC Output Socket | 3*AC Output (International universal socket) | |
| Transfer Time (UPS) | 10ms (Typical Value) | |
| Efficiency | >92% | |
| On-load Motor Capacity | 4HP | 2HP |
| PV Charge | 145Vdc (60-145Vdc)； MC4 Terminal（T4+,T4-) | |
| Max. PV Power | 4400W (Maximum PV Input Current:50A) | |
| Dimension | L*W*H 530*485*150mm (body), 530*485*190mm (with stand) [22mm space between modules] | |
| Weight | 30kg | |
| LiFePO4 Battery Module – Flexible Stacked Installation (6 modules max.) | ||||||
| Model | M-BOX1 (1) | M-BOX1 (2) | M-BOX1 (3) | M-BOX1 (4) | M-BOX1 (5) | M-BOX1 (6) |
| Nonimal Voltage | 51.2V | |||||
| Nominal Capacity | 100Ah | 200Ah | 300Ah | 400Ah | 500Ah | 600Ah |
| Nominal Energy | 5KWH | 10KWH | 15KWH | 20KWH | 25KWH | 30KWH |
| Voltage Working Range | 40V~57.6V | |||||
| Standard Charge Current | 0.2C/module | |||||
| Max. Charge Current | 80A/module | |||||
| Max. Continuous Discharge Current | 100A/module | |||||
| Maximum load power | 4KW | 8KW | 12KW | 16KW | 20KW | 24KW |
| Cycle Life* | ≥6000 cycles (*Test Condition: 80% DOD, 0.2C current @25℃) | |||||
| Cell Equalizer Current | 1~5A max. | |||||
| Communication Interface | RS232: Upper software communication port RS485 & CAN: Inverter communication port Double RS485 Battery parallel communication port |
|||||
| BMS Protection | Overcharge, Overdischarge, Overcurrent, Shortcircuit,Over temperature protections, Cell balance | |||||
| Warranty | 5 Years Warranty(Battery); 15 years design service life | |||||
| Dimension: (With inverter) L*W*H | 530*485*362mm | 530*485*514mm | 530*485*686mm | 530*485*858mm | 530*485*1030mm | 530*485*1202mm |
| Weight | 45kg | 90kg | 135kg | 180kg | 225kg | 270kg |
| Enclosure Protection | IP20 | |||||
| Operating Temperature Charge: Humidity Certificates |
0℃~45℃; Discharge: -10℃~55℃; Storage: -10℃~45℃ ≤95% Cell: UL1973/IEC62619/CE/UN38.3; Battery: UN38.3/MSDS |
|||||
| Flexible Function | Battery system only, can be compatible with other inverter brands, like SMA, Growatt, DEYE, Victron, etc. | |||||
| Category | Details |
|---|---|
| Features | – 5kW lithium-ion battery storage – Compatible with residential solar panels – Intelligent Battery Management System (BMS) – Compact and modular design – High cycle life and deep discharge capability – Supports off-grid and grid-tied solar systems |
| Benefits | – Provides reliable backup power for homes – Reduces electricity bills by maximizing solar energy use – Space-saving design for easy installation – Low maintenance and long lifespan – Eco-friendly, clean energy storage |
| Specifications | – Battery Type: Lithium-ion – Capacity: 5kW – Voltage: Typically 48V (model dependent) – Cycle Life: 6000+ cycles at 80% DOD – Operating Temperature: -10°C to 50°C – Communication: CAN/RS485 compatible – Application: Home solar energy storage, backup power |
| Feature / Specification | Genixgreen 5kW Lithium-ion | Typical Lead-Acid Battery (5kW) |
|---|---|---|
| Battery Type | Lithium-ion | Lead-acid |
| Capacity | 5kW | 5kW |
| Cycle Life | 6000+ cycles at 80% DOD | 800–1200 cycles at 50% DOD |
| Depth of Discharge (DOD) | Up to 80% | 50% |
| Efficiency | 95–98% | 70–85% |
| Maintenance | Low, mostly monitoring | High, requires water topping and cleaning |
| Weight | Lighter, compact | Heavier, bulkier |
| Environmental Impact | Eco-friendly, recyclable | Contains toxic lead, less eco-friendly |
| Installation | Easy, modular | Heavier, floor placement recommended |
| Cost | Higher initial cost | Lower upfront cost |
| Backup Duration | Longer due to deeper discharge | Shorter due to limited DOD |

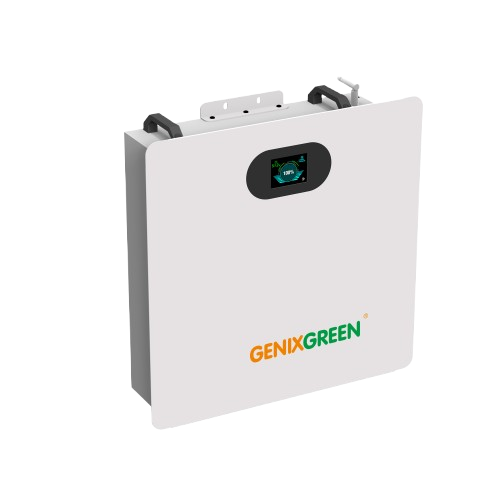

The Genixgreen 5kW Solar Lithium Battery System is designed for smaller residential solar setups, providing efficient energy storage and backup power. Its 5kW lithium-ion battery allows homeowners to store surplus solar energy for use during nighttime or power outages. The system features a compact and modular design, making installation simple and space-efficient, suitable for homes with limited floor space.
The integrated Battery Management System (BMS) monitors and optimizes battery performance, balancing charge levels, and ensuring safe operation. With high cycle life and deep discharge capability, this system maximizes the usable energy and ensures long-term reliability. Its compatibility with residential solar panels allows users to reduce electricity bills by consuming stored solar energy during peak demand periods.
Benefits of the Genixgreen Battery include enhanced energy independence, reliable backup power, and environmentally friendly operation. The lithium-ion chemistry of the Genixgreen Battery provides higher efficiency and longer lifespan compared to lead-acid batteries, while requiring minimal maintenance. The system can operate in both grid-tied and off-grid configurations, offering flexibility to homeowners with varying energy requirements. Considering the Genixgreen Battery price, it presents a cost-effective investment for those seeking a durable and efficient home energy storage solution.
Ideal for homeowners looking to maximize solar energy usage and reduce electricity costs, the 5kW Genixgreen system combines compact design, intelligent management, and sustainable technology. Its efficient energy storage, low maintenance, and long lifespan make it a practical and eco-conscious solution
PAS SOLAR is a Distributer of solar equipment based in UAE. Composed of a team of professionals with the goal to provide customers with the latest Tier 1 Solar system in the region.
