Growatt AXE Battery Set 30kWh for WIT

Request a Quote

Prices were last updated on November 20, 2026

Technical specification

Category Specification
Product Type Commercial High‑Capacity Battery Storage System
Total Usable Capacity 30 kWh (6 × 5 kWh AXE battery modules)
Battery Chemistry Lithium‑Iron Phosphate (LFP), cobalt‑free
Included Components 6 × AXE 5 kWh batteries, 1 × AXE BMS controller, 1 × AXE battery rack, connection cables
Modular Design Stackable battery modules for flexible expansion
Protection Rating IP20 (for indoor use)
Warranty Up to 5 years
Installation Indoor, floor‑mounted in rack
BMS Monitoring Battery management (charge/discharge control, cell monitoring)
Compatible Inverters Growatt WIT 29.9–50K‑XHU commercial three‑phase hybrid inverters
Cell Voltage Balancing Integrated for longer battery life

Growatt AXE Battery Set 40kWh include:

Configuration for one WIT inverter:

  • 6 x AXE batteries 5 kWh
  • 1 x Growatt AXE BMS
  • 1 x Growatt AXE 40H-E1 Battery rack (8 pcs of AXE batteries per rack)

GENERAL INFORMATION

  • Works with WIT 29,9-50K-XHU commercial 3-phase hybrid inverters
  • AXEs LFP (lithium-iron-phosphate) batteries are cobalt-free batteries and achieve excellent levels of safety and reliability
  • Easy installation thanks to modular, stackable design
  • Remote firmware update
  • Long life, 5-year warranty
  • AXE batteries are IP20 rated for extended trouble-free operation indoors
  • AXEs monitor not only the total state of the battery, but also the individual cells, and provide complete protection of the battery system
  • Balancing the voltage of the cells allowing the battery to last longer
  • AXE commercial batteries can be added later to extend the total capacity
  • Growatt waranty plan

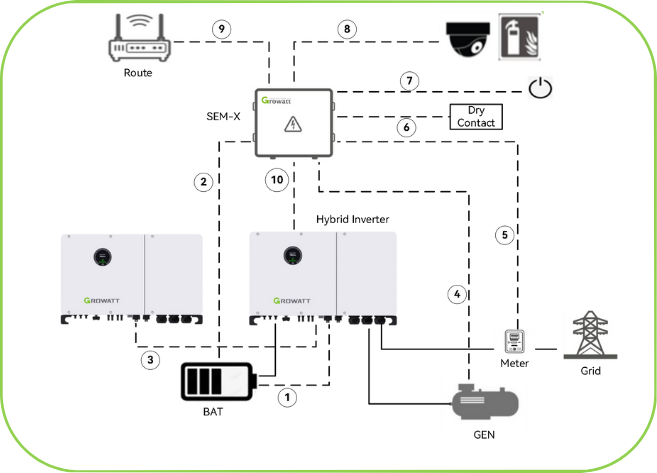

CI-WITAXE-Hybrid-Energy-Storage-System-Introduction-V2.1-20241111.pdf-4

5/5 - (1 vote)

1 review for Growatt AXE Battery Set 30kWh for WIT

  1. David Morgan –

    Has anyone tested the Growatt AXE Battery Set 30kWh with WIT? Does it maintain stable performance over time?
