| Model number |

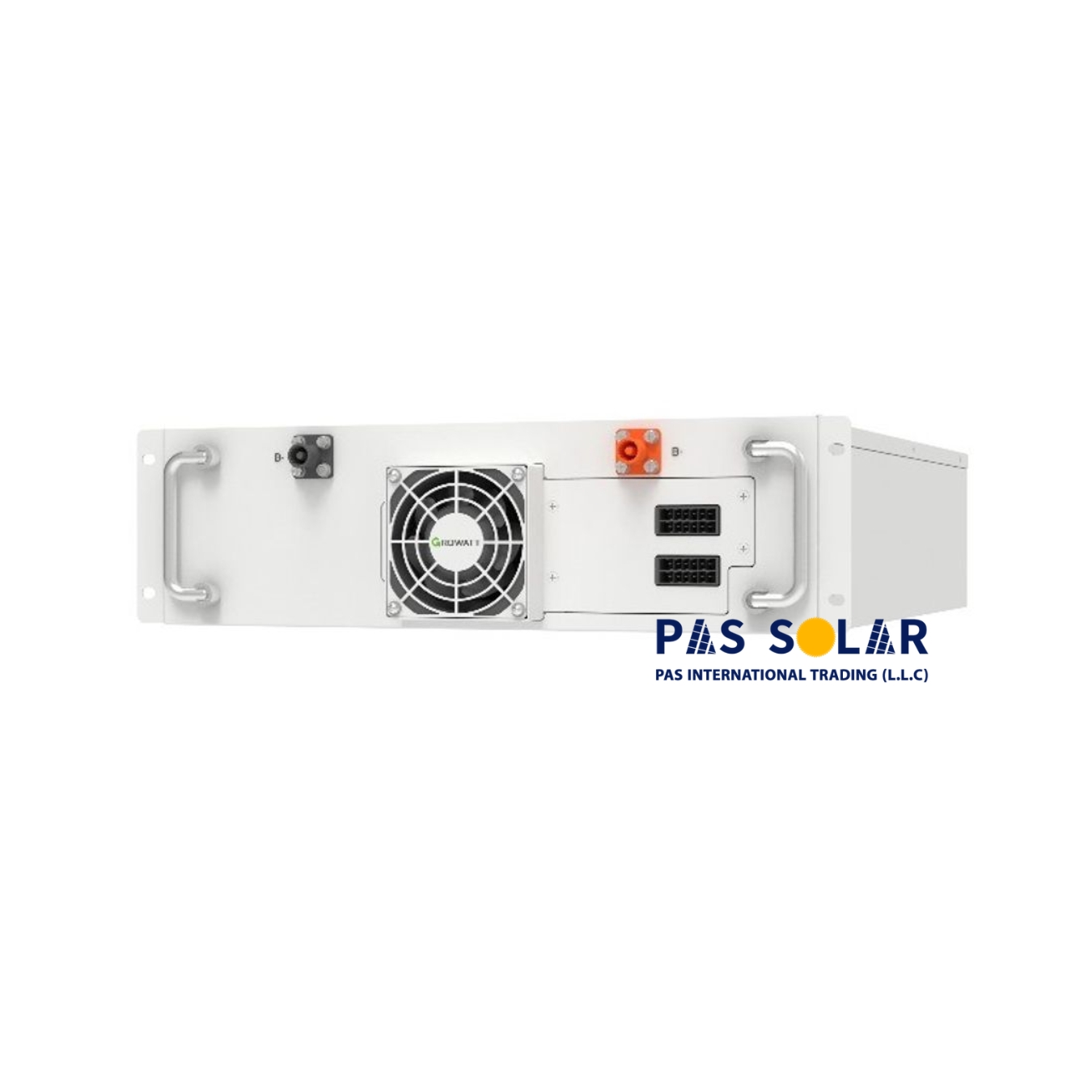

AXE 5.0H-E1 |
|
|---|---|---|
| specification | ||
| configuration |
Battery module (HV system component) |
|
| Type of storage system |
LFP (LiFePO₄) |
|
| Mounting options |

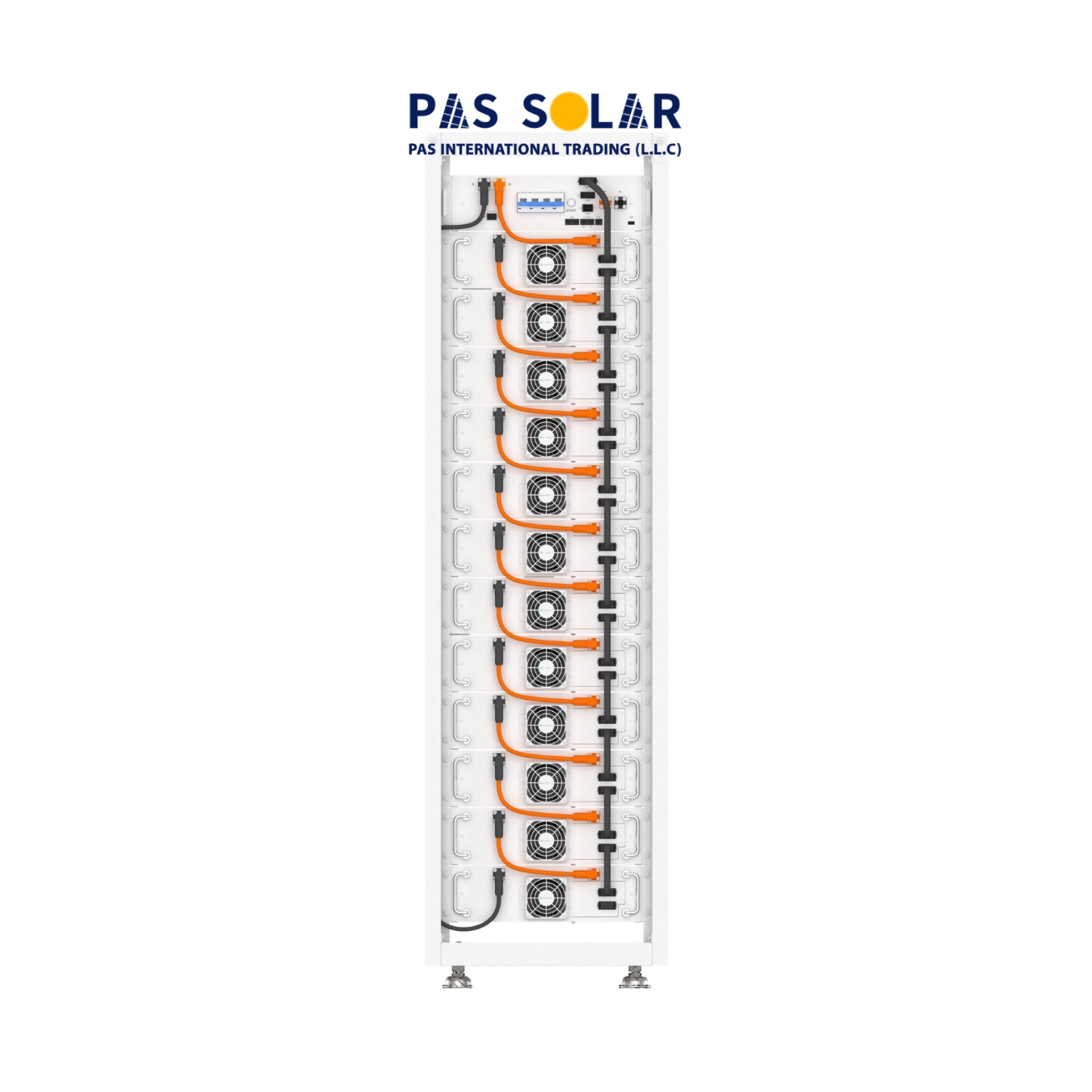

Floor / rack mounting (stackable HV system) |
|
| Max. number of parallel units | 48 | |
| Battery data sheet | ||
| Electrical data | ||
| Nominal voltage |
|
|
| Operating voltage range |
46.4 – 56.8 V |
|
| Nominal energy |
5.12 kWh (per module) |
|
| Usable energy |
≈ 4.9 – 5.12 kWh (system dependent) |
|
| Cycle stability |
≥ 6000 cycles |
|
| Temperature parameters | ||
| Charging temperature |
0 ~ +50 ℃ |
|
| Discharge temperature |
-10 ~ +50 ℃ |
|
| Storage temperature |
-20 ~ +60 ℃ |
|
| General data | ||
| Dimensions (L*W*H) |
482.6 × 131 × 580 mm |
|
| Weight |
≈ 47 kg |
|
| IP protection class |
IP20 |
|
| Max. height |
2000 m |
|
| Cooling method |
Natural convection |
|
| Communication |
CAN, RS485 |
|
3 reviews for Growatt High Voltage LiFePO₄ Battery – AXE 5.0H-E1
Lucas –
It has been super reliable in our home high-voltage setup.
It handles heavy loads without issues, and the performance has been very consistent day after day. I’m really impressed with the build quality ngl
Isabella –
Easy to monitor, very stable, and I feel confident about adding more units in the future as soon as possible
naeim –
Hello, can i order this product for qatar ?
