| Hybrid 100 KW HV
5 Years Warranty |
$ 8,990
| Datasheet | WIT 50K-H WIT 50K-HU | WIT 63K-H WIT 63K-HU | WIT 75K-H WIT 75K-HU | WIT 100K-H WIT 100K-HU |
| Input Data (PV) | ||||
| Max. recommended PV power(for module STC) | 109.2kW | 124.8kW | 156kW | 156kW |
| Start voltage | 195V | |||
| Max. input voltage | 1100V | |||
| Max. open circuit voltage of PV*1 | 1000V | |||
| MPPT nominal voltage/range | 550V,180V~800V | |||
| Max. input current per MPP tracker | 32A | |||
| Max. short-circuit current per MPP tracker | 40A | |||
| No. of PV strings per MPP tracker | 2 | |||
| No. of MPP trackers | 7 | 8 | 10 | 10 |
| Output Data (AC) | ||||
| AC nominal power | 50kW | 63kW | 75kW | 100kW |
| Max. AC apparent power | 55kVA | 69.3kVA | 82.5kVA | 110kVA |
| Nominal AC voltage/range | 380/400/415V,-15%~+10% | |||
| Nominal AC grid frequency/range | 50/60Hz,45-55Hz/55-65Hz | |||
| Max. output current | 83.3A | 105A | 125A | 166.7A |
| Adjustable power factor | -1…+1 | |||
| THDi | <3% (@100% load) | |||
| AC grid connection type | 3P3W+PE/3P4W+PE | |||
| Input Data (AC) | ||||
| AC nominal power | 50kW/100kW | 63kW/126kW | 75kW/150kW | 100kW/200kW |
| Max. AC apparent power 55kVA/100kVA | 69.3kVA/126kVA | 82.5kVA/150kVA | 110kVA/200kVA | |
| Nominal AC voltage/range | 380/400/415V,-15%~+10% | |||
| Nominal AC grid frequency/range 50/60Hz,45-55Hz/55-65Hz | ||||
| Max. input current | 83.3A/151.5A | 105A/190.9A | 125A/227.3A | 166.7A/303A |
| Battery Data (DC) | ||||
| Continuous charging and discharging power | 56.7kW | 71.4kW | 85.1kW | 113.5kW |
| Battery voltage range | 600-1000V (for 3P3W) / 680-1000V (for 3P4W) | |||
| Recommended battery voltage | 768V | |||
| Max charging and discharging current | 83.3A | 105A | 125A | 167A |
| BMS communication | RS485/CAN | |||
| Backup Power (AC)*2 | ||||
| Rated AC output power | 50kW | 63kW | 75kW | 100kW |
| Max. AC apparent power | 60kVA | 75.6kVA | 90kVA | 120kVA |
| Rated AC output voltage | 220V/230V/240V(L-N),380V/400V/415V(L-L) | |||
| Nominal AC output frequency | 50/60 Hz | |||
| Load connection | 3P3W+PE/3P4W+PE | |||
| Max. output current | 90.9A | 114.5A | 136.4A | 181.8A |
| THDv | <3% (Linear load) | |||
| Load unbalance | 100% three-phase unbalanced | |||
| Overload capacity | ≤110%: Continues; 110%~120%: <10min; >120%: 200ms | |||
| On/off grid transfer time | ≤20ms | |||
| Efficiency | ||||
| Max. efficiency | 98.2% | |||
| Protection Devices | ||||
| PV reverse polarity protection | Yes | |||
| Battery reverse protection | Yes | |||
| AC/DC surge protection | Type II | |||
| Insulation resistance monitoring | Yes | |||
| Ground fault monitoring | Yes | |||
| Grid monitoring | Yes | |||
| Residual-current monitoring unit | Yes | |||
| AC short-circuit protection | Yes | |||
| Strings monitoring | Yes | |||
| Anti-islanding protection | Yes | |||
| PID protection | Yes | |||
| AFCI function | Opt | |||
| General | ||||
| Dimensions (W/H/D) | 820/1350/510mm | |||
| Weight | 153kg | 153kg | 160kg | 160kg |
| Operating temperature range | –30 °C~60 °C (> 50°C, derating) | |||
| Relative humidity | 0~100% | |||
| Altitude | 4000m | |||
| Topology | Transformerless | |||
| Cooling | Smart air cooling | |||
| IP degree | IP66 | |||
| Display | OLED+LED/WiFi+APP | |||
| Interfaces: RS485/CAN/USB | Yes | |||
| Interfaces: WIFI/LAN | Opt | |||
| Warranty (5/10 years) | Yes/Opt | |||
| EN 62920-2017, IEC/EN 62477-1, IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116, IEC 61727, G99:2020, EN 50549-1, VDE 4105, NRS 097-2-1 | ||||
For setup and maintenance guidance, users can refer to the official Growatt inverter manual, which provides detailed instructions on installation, configuration, and troubleshooting. Whether you’re optimizing system performance or ensuring safety compliance, the manual is an essential resource for both residential and commercial applications. Make the most of your investment with proper operation knowledge.

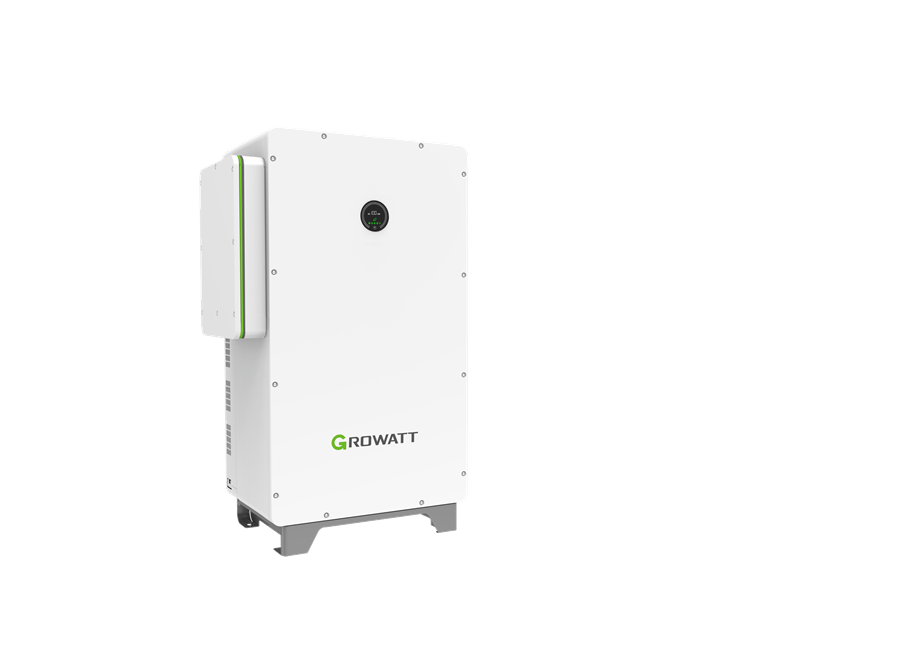

The Growatt Inverter WIT 100KTL3-H-UP LV is a reliable and high-performance solution for large-scale solar power systems. With its advanced three-phase design, it delivers up to 100 kW output, helping you get the most from your solar panels. This inverter features smart monitoring, high efficiency, and flexible configuration options to fit different installation needs. Its low-voltage operation ensures stable performance even under challenging conditions. Choose Growatt for dependable energy savings and long-term reliability.
