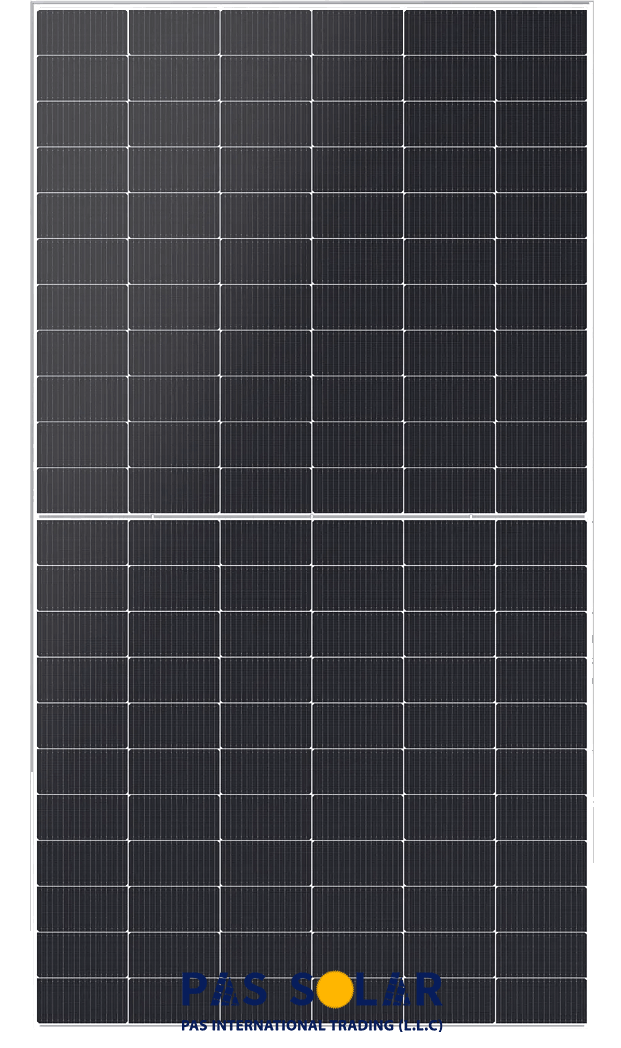

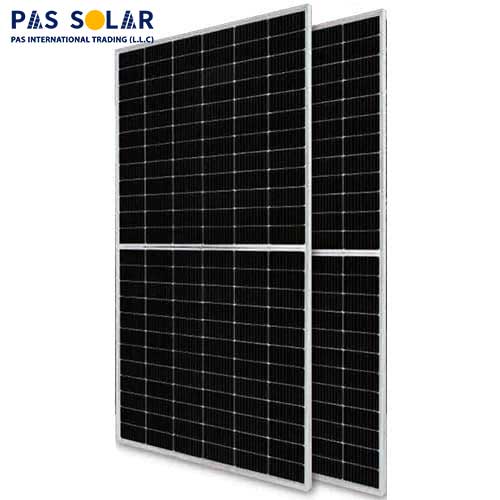

| JAM66D46 LB – n-type Double Glass Bifacial Modules |
$ 93
| Item | Specification |
|---|---|
| Cell Type | Mono |
| Number of Cells | 132 (6 × 22) |
| Weight | 38.2 kg |
| Dimensions | 2384 ±2 mm × 1303 ±2 mm × 33 ±1 mm |
| Front Glass / Back Glass | 2.0 mm / 2.0 mm |
| Frame | Aluminum Alloy |
| Junction Box | IP68, 3 diodes |
| Cable Cross Section | 4 mm² (IEC), 12 AWG (UL) |
| Connector | QC 4.10-351 / MC4-EVO2A |
| Cable Length (Portrait) | 300 mm (+) / 400 mm (–) |
| Cable Length (Landscape) | 1500 mm (+) / 1500 mm (–) |
| Packaging | 33 pcs/pallet, 594 pcs/40HQ |
(STC: Irradiance 1000 W/m², Cell Temperature 25°C, AM1.5G)
| Module Type | Pmax (W) | Voc (V) | Vmp (V) | Isc (A) | Imp (A) | Module Efficiency (%) |
|---|---|---|---|---|---|---|
| JAM66D46-690/LB | 690 | 47.80 | 40.02 | 18.35 | 17.24 | 22.2 |
| JAM66D46-695/LB | 695 | 48.00 | 40.22 | 18.39 | 17.28 | 22.4 |
| JAM66D46-700/LB | 700 | 48.20 | 40.42 | 18.43 | 17.32 | 22.5 |
| JAM66D46-705/LB | 705 | 48.40 | 40.61 | 18.47 | 17.36 | 22.7 |
| JAM66D46-710/LB | 710 | 48.60 | 40.80 | 18.51 | 17.40 | 22.9 |
| JAM66D46-715/LB | 715 | 48.80 | 41.00 | 18.55 | 17.44 | 23.0 |
| Module Type | Pmax (W) | Voc (V) | Vmp (V) | Isc (A) | Imp (A) |
|---|---|---|---|---|---|
| JAM66D46-690/LB | 745 | 47.80 | 40.02 | 19.82 | 18.62 |
| JAM66D46-695/LB | 751 | 48.00 | 40.22 | 19.86 | 18.66 |
| JAM66D46-700/LB | 756 | 48.20 | 40.42 | 19.90 | 18.71 |
| JAM66D46-705/LB | 761 | 48.40 | 40.61 | 19.95 | 18.75 |
| JAM66D46-710/LB | 767 | 48.60 | 40.80 | 19.99 | 18.79 |
| JAM66D46-715/LB | 772 | 48.80 | 41.00 | 20.03 | 18.84 |
| Parameter | Value |
|---|---|
| Temperature Coefficient of Isc (α_Isc) | +0.045 % / °C |
| Temperature Coefficient of Voc (β_Voc) | −0.250 % / °C |
| Temperature Coefficient of Pmax (γ_Pmp) | −0.290 % / °C |
| Power Tolerance | 0 ~ +3 % |
| Item | Specification |
|---|---|
| Maximum System Voltage | 1500 V DC |
| Operating Temperature | −40°C to +85°C |
| Maximum Series Fuse Rating | 35 A |
| Maximum Static Load (Front) | 5400 Pa |
| Maximum Static Load (Back) | 2400 Pa |
| NOCT | 45 ±2°C |
| Bifaciality | 80% ±10% |
| Safety Class | Class II |
| Fire Performance | UL Type 29 / Class C |
| Warranty Type | Period |
|---|---|
| Product Warranty | 12 Years |
| Linear Power Output Warranty | 30 Years |
| First Year Degradation | ≤ 1% |
| Annual Degradation (Years 2–30) | 0.4% |
