| Datasheet | MID 15KTL3-X | MID 17KTL3-X | MID 20KTL3-X | MID 22KTL3-X | MID 25KTL3-X |
| Input data (DC) | |||||
| Max. recommended PV power (for module STC) | 22500W | 25500W | 30000W | 33000W | 37500W |
| Max. DC voltage | 1100V | ||||
| Start Voltage | 250V | ||||
| Normal Voltage | 580V | ||||
| MPPT voltage range | 200V-1000V | ||||
| No. of MPP trackers/strings per MPP tracker | 2/2 | 2/2 | 2/2 | 2/2 | 2/3 |
| Max.input current per MPP tracker | 27A | 27A | 27A | 27A | 27A/40.5A |
| Max. short-circuit current per MPP tracker | 33.8A | 33.8A | 33.8A | 33.8A | 33.8A/50.7A |
| Output data (AC) | |||||
| Rated AC output power | 15000W | 17000W | 20000W | 22000W | 25000W |
| Max. AC apparent power | 16600VA | 18800VA | 22000VA | 24400VA | 27700VA |
| Nominal AC voltage(range*) | 230V/400V; 340-440V | ||||
| AC grid frequency;(range*) | 50/60 Hz; 45~55Hz/55-65 Hz | ||||
| Max. output current | 24.2A | 27.4A | 31.9A | 35.5A | 40.2A |
| Adjustable power factor | 0.8 leading – 0.8 lagging | ||||
| THDi | <3% | ||||
| AC grid connection type | 3W+N+PE | ||||
| Efficiency | |||||
| Max.efficiency | 98.75% | ||||
| European efficiency | 98.6% | ||||
| MPPT efficiency | 99.9% | ||||
| Protection devices | |||||
| DC reverse polarity protection | Yes | ||||
| DC Switch | Yes | ||||
| AC/DC surge protection | Type II / Type II | ||||
| Insulation resistance monitoring | Yes | ||||
| AC short-circuit protection | Yes | ||||
| Ground fault monitoring | Yes | ||||
| Grid monitoring | Yes | ||||
| Anti-islanding protection | Yes | ||||
| Residual-current monitoring unit | Yes | ||||
| String monitoring | Yes | ||||
| AFCI protection | Optional | ||||
| General data | |||||
| Dimensions (W / H / D) | 525/395/222mm | ||||
| Weight | 23kg | ||||
| Operating temperature range | –25 °C … +60 °C | ||||
| Self-Consumption (night) | < 1W | ||||
| Topology | Transformerless | ||||
| Cooling | Smart air cooling | ||||
| Protection degree | IP65 | ||||
| Relative Humidity | 0~100% | ||||
| Altitude | 4000m | ||||
| DC connection | H4/MC4(Optional) | ||||
| AC connection | Cable gland+OT terminal | ||||
| Display | OLED+LED/WIFI+APP | ||||
| Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN | Yes/Yes /Optional/Optional/Optional/Optional | ||||
| Warranty: 5 years / 10 years | Yes/Optional | ||||
| CE, VDE0126, Greece, EN50549-1, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, G98/G99, G100, KSC8565 | |||||

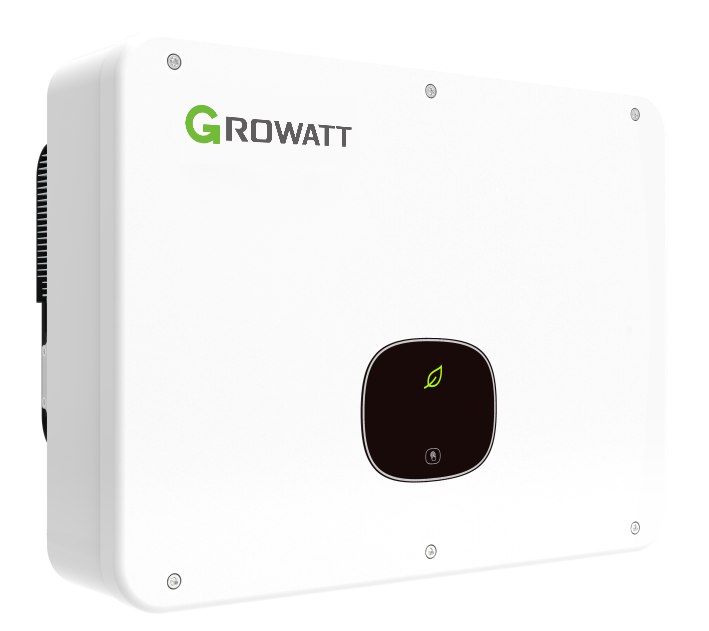

The Growatt Inverter MID 25KTL3-X is a perfect choice for small to medium commercial solar systems. Delivering 25 kW of efficient power, this on grid solar inverter helps businesses and property owners reduce their electricity bills by maximizing solar energy output. If you’re planning to buy an inverter that offers great performance at a competitive price, the MID 25KTL3-X is worth considering.
This inverter stands out with its high conversion efficiency, ensuring that more sunlight is turned into usable electricity. Its durable design guarantees reliable operation even in fluctuating voltage or challenging weather conditions, which reduces maintenance needs and downtime. That means less hassle and more consistent energy savings.
The MID 25KTL3-X also comes with smart monitoring features, so you can easily track your system’s performance in real time. This helps detect and resolve any issues quickly, keeping your solar project running smoothly. Installation is straightforward and flexible, making it suitable for a wide range of commercial applications.
From a price perspective, the Growatt MID 25KTL3-X balances affordability with advanced technology. The initial purchase cost is balanced by long-term energy savings and reliable operation, making it a cost-effective investment. Plus, Growatt offers strong warranties and global support to provide peace of mind for your solar system.
In summary, if you want to buy a reliable, efficient, and reasonably priced inverter for your commercial solar setup, the Growatt MID 25KTL3-X is a smart and practical choice. It delivers solid performance, smart features, and durability to help you get the most out of your solar investment.
The Growatt MID 25KTL3-X is also an excellent option for those seeking an off-grid solar solution. This Off grid Growatt Inverter offers reliable performance and high efficiency, making it suitable for areas without grid access. Its advanced features and durable design ensure stable power supply and easy monitoring, helping you maximize your solar energy independence.
