| Hybrid 12 KW Three Phase 48 V
5 Years Warranty |
$ 1,655
| Datasheet | WIT 8K-HU | WIT 10K-HU | WIT 12K-HU | WIT 15K-HU |
| Input data (PV) | ||||||||
| Max. recommended PV power (for module STC) | 12800W | 16000W | 19200W | 24000W | ||||
|
1000V | |||||||
| Start voltage | 160V | |||||||
|
600V | |||||||
| MPPT voltage range | 160V-850V | |||||||
|
20A+20A | 40A+20A | ||||||
| Max. short-circuit current per MPP tracker | 25A+25A | 50A+25A | ||||||
|
1+1 | 2+1 | ||||||
| No. of MPP trackers | 2 |
|
12000W | ||||
| AC nominal power | 8000W | 10000W | 15000W | ||
|
8800VA | 11000VA | 13200VA | 16500VA | |
| Nominal AC voltage/range | 220V/230V, 380V/400V, -15%~+10% | ||||
|
50/60Hz, 45~55Hz/55-65 Hz | ||||
| Max. output current | 13.3A@220V, 12.8A@230V | 16.7A@220V, 15.9A@230V | 20A@220V, 19.1A@230V | 25A@220V, 23.9A@230V | |
|
-1…+1 | ||||
| THDi | <3% | ||||
|
3P3W+PE/3P4W+PE | ||||
| Input data (AC) | 24000W | |||
| AC nominal power | 16000W | 20000W | 30000W | |
| Max. AC apparent power | 17600VA | 22000VA | 26400VA | 33000VA |
| Nominal AC voltage/range | 220V/230V, 380V/400V, -15%~+10% | |||
| Nominal AC grid frequency/range | 50/60Hz, 45~55Hz/55-65 Hz | |||
| Max. input current | 26.6A@220V, 25.5A@230V | 33.3A@220V, 31.9A@230V | 40A@220V, 38.3@230V | 50.1A@220V, 47.8A@230V |
| Battery data (DC) | |||||
| Battery type | Lead-acid or Lithium-ion | ||||
| Battery voltage range | 40-60V | ||||
| Max charging and discharging current | 200A | 220A | 250A | 290A | |
| Recommended battery voltage | 51.2V | ||||
| BMS communication | RS485/CAN |
|
12000W | ||||
| Rated AC output power | 8000W | 10000W | 15000W | ||
|
2 time of rated power, 10s | ||||
| Rated AC output voltage | 220V/230V, 380V/400V | ||||
|
50/60Hz | ||||
| Max. output current | 24.2A@220V 23.2A@230V |
30.3A@220V 29A@230V |
36.4A@220V 34.8A@230V |
45.5A@220V 43.4A@230V |
|
|
3% (Linear load) | ||||
| Load unbalance | 100% three-phase unbalanced | ||||
|
10ms | ||||
| Efficiency | |
| Max. efficiency | 97.60% |
| European efficiency | 97.00% |
| MPPT efficiency | 99.90% |
|
||
| PV reverse polarity protection | Yes | |
|
Yes | |
| DC/AC surge protection | Type II/Type III | |
|
Yes | |
| Residual-current monitoring unit | Yes | |
|
Yes | |
| Ground fault monitoring | Yes | |
|
Yes | |
| Strings monitoring | Yes | |
|
Yes | |
| PID protection | Opt | |
|
Opt |
| General | ||
| Dimensions (W / H / D) | 422/658/254mm | |
|
38kg | |
| Operating temperature range | –30°C … +60°C (> 45°C, derating) | |
|
≤50dB(A) | |
| Relative humidity | 0~100% | |
|
3000m | |
| Topology | Transformerless | |
|
Smart air cooling | |
| IP degree | IP66 | |
|
OLED/LED+APP | |
| Interfaces: RS485/USB | Yes | |
|
Yes | |
| Warranty (5/10 years) | Yes/Opt |

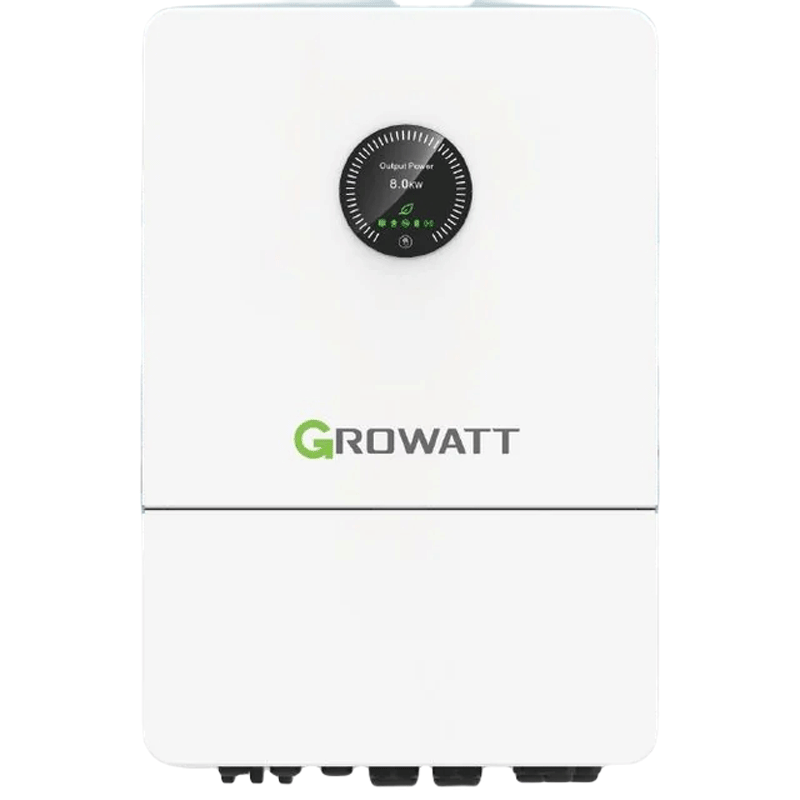

The Growatt WIT 12K-HU inverter pairs perfectly with JA Solar panels, offering efficient hybrid power solutions for residential and light commercial projects. Its reliable 12 kW output and smart monitoring system ensure optimized energy use and long-term savings. Ideal for those seeking quality and performance in solar investments.
The Growatt Inverter WIT 12K-HU is an excellent choice for small residential solar systems or light commercial projects. Delivering 12 kW of efficient power, it helps reduce your electricity bills while supporting clean energy use. Its compact size and smart monitoring features make installation and management simple and hassle-free. If you’re thinking about buying a reliable inverter at a competitive price, the WIT 12K-HU offers great value and dependable performance. It’s a solid investment for anyone who wants to save energy costs without compromising quality or durability.
PAS SOLAR is a Distributer of solar equipment based in UAE. Composed of a team of professionals with the goal to provide customers with the latest Tier 1 Solar system in the region.
