| Hybrid 30 KW HV
5 Years Warranty |
$ 4,050
| Datasheet | WIT 29.9K-XHU | WIT 30K-XHU | WIT 36K-XHU | WIT 40K-XHU | WIT 50K-XHU |
| Input Data (PV) | |||||
| Max. recommended PV power
(for module STC) |
59.8kW | 60kW | 72kW | 80kW | 100kW |
| Start voltage | 195V | ||||
| Max. DC voltage | 1100V | ||||
| Nominal voltage | 620V | ||||
| MPPT voltage range | 180V-1000V | ||||
| Full load DC voltage range | 375V-850V | 375V-850V | 450V-850V | 500V-850V | 620V-850V |
| Max. input current per MPP tracker | 40A | ||||
| Max. short-circuit current per MPP tracker | 50A | ||||
| No. of PV strings per MPP tracker | 2 | ||||
| No. of MPP trackers | 4 | ||||
| Battery Data (DC) | |||||
| Battery voltage range | 200-900V | ||||
| Full load battery voltage range | 200-800V | 200-800V | 225-800V | 250-800V | 310-800V |
| Recommended battery voltage | 512V | ||||
| No. of battery input | 3 | ||||
| Max. charging/discharging current | 55A*3 | ||||
| BMS communication | RS485/CAN | ||||
| Input/Output AC | |||||
| AC input/output nominal power(Grid) | 59.8kW/29.9kW | 60kW/30kW | 72kW/36kW | 80kW/40kW | 100kW/50kW |
| Max. AC input/output apparent power(Grid) | 59.8kVA/29.9kVA | 66kVA/33kVA | 79.2kVA/39.6kVA | 88kVA/44kVA | 110kVA/55kVA |
| Max. input/output current(Grid) | 90.6A/45.3A | 100A/50A | 120A/60A | 133.3A/66.7A | 166.7A/83.3A |
| Max. input current(GEN/AC couple) | 90.6A/45.3A | 100A/45.5A | 120A/54.5A | 133.3A/60.7A | 166.7A/75.7A |
| Max. continuous
AC passthrough current |
200A | ||||
| Nominal AC voltage/range*1 | 380/400V -15%~10% | ||||
| Nominal AC grid frequency/range | 50Hz/60Hz, 45-55Hz/55-65Hz | ||||
| Power factor(@nominal power) | >0.99 | ||||
| Adjustable power factor | -1…+1 | ||||
| THDi | <3% | ||||
| AC grid connection type | 3P3W+PE/3P4W+PE | ||||
| Backup Power | |||||
| AC nominal output power | 29.9kW | 30kW | 36kW | 40kW | 50kW |
| Max. AC apparent power | 29.9kVA | 45kVA | 54kVA | 60kVA | 75kVA |
| Nominal AC voltage | 220V/230V(L-N), 380V/400V(L-L) | ||||
| Nominal AC frequency | 50/60Hz | ||||
| Max. output current | 68.0A | 68.2A | 81.8A | 91A | 113.6A |
| Overload capability | 1.5 times of rated power, 10s | ||||
| THDv | <3% (@Linear full load) | ||||
| Switch time | ≤10ms | ||||
| Efficiency | |||||
| Max. efficiency | 98.1% | ||||
| Protection Devices | |||||
| DC reverse polarity protection | Yes | ||||
| Battery reverse protection | Yes | ||||
| Insulation resistance monitoring | Yes | ||||
| AC/DC surge protection | Type II | ||||
| AC short-circuit protection | Yes | ||||
| Ground fault monitoring | Yes | ||||
| Grid monitoring | Yes | ||||
| String monitoring | Yes | ||||
| Anti-islanding protection | Yes | ||||
| Residual-current monitoring unit | Yes | ||||
| General Data | |||||
| Dimensions (W/H/D) | 920/585/320mm | ||||
| Weight | 90kg | ||||
| Operating temperature range | -30°C – 60°C (>50°C derating) | ||||
| Noise emission | ≤55dB | ||||
| Altitude | 4000m | ||||
| Topology | Transformerless | ||||
| Cooling | Smart air cooling | ||||
| Protection degree | IP66 | ||||
| Relative humidity | 0~95% | ||||
| Interfaces | |||||
| Display | OLED+LED/APP | ||||
| Interfaces | RS485/USB/CAN, WIFI/LAN(Opt) | ||||
| Warranty: 5 / 10 years | Yes/Opt | ||||
| NRS 097-2-1:2017, EN 50549-1, NC RFG, PSE-2018, PTPiREE-2021, IEC 62116, IEC 61727, G99:2020, VDE 4105, IEC/EN 61000-6-1, IEC/EN 61000-6-3, IEC/EN 62109-1, IEC/EN 62109-2 | |||||

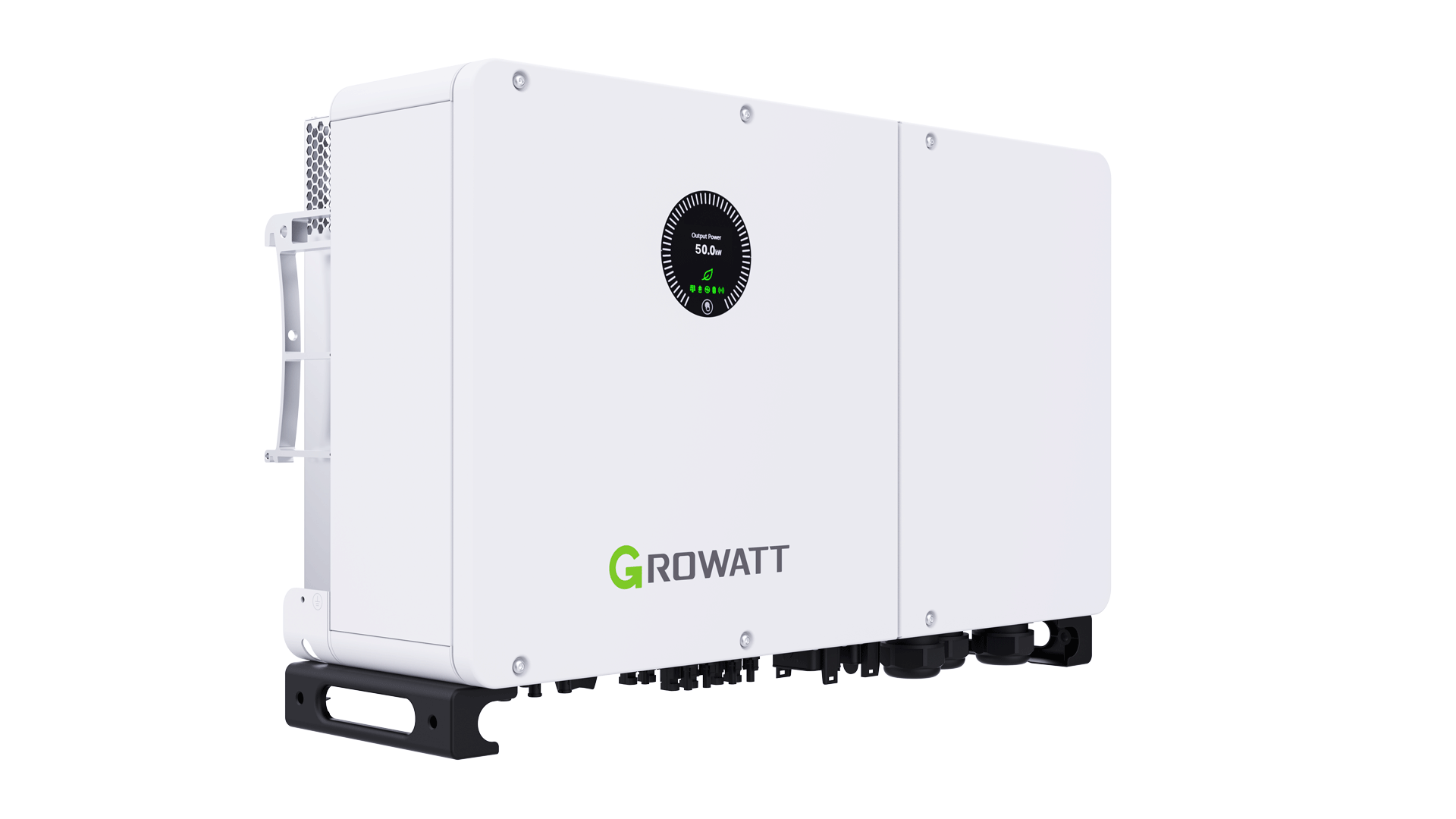

The Growatt Inverter WIT 30K-XHU offers an efficient and dependable solution for small to medium solar setups, perfect for maximizing solar power Dubai installations. With its 30 kW capacity and intelligent features like real-time monitoring and advanced protections, it ensures reliable energy savings. Ideal for businesses and homes aiming to optimize clean energy use in Dubai’s sunny climate.
The Growatt Inverter WIT 30K-XHU is a reliable and energy-efficient solution for small to mid-sized solar systems. With a 30 kW output, it’s ideal for those looking to reduce electricity bills and rely more on clean energy. It features advanced protection, real-time monitoring, and easy integration into commercial setups. Whether you’re upgrading or starting fresh, buying the WIT 30K-XHU gives you great value at a reasonable price. It’s a smart investment for anyone serious about long-term solar savings.
PAS SOLAR is a Distributer of solar equipment based in UAE. Composed of a team of professionals with the goal to provide customers with the latest Tier 1 Solar system in the region.
