How solar panels are made ?

Solar power has been the promise of a greener tomorrow in recent years. More and more homes and businesses have started converting to solar power, and everyone wishes to discover how solar panels are made and why they are so efficient. If you are interested in learning how solar panels are made from raw material and also need to learn the working of solar panels, this step-by-step, complete guide does exactly that. We will also touch upon the cost aspect, the material required, and whether you can build your own solar panels.

These panels are a key part of renewable energy systems, including solar products in Dubai, where they are increasingly used to harness the sun’s power for sustainable living.

Aspect	Details
Main Materials	Silicon (polycrystalline, monocrystalline), polymers, glass, aluminium
How Solar Panels Work	Solar panels use the photovoltaic effect to convert sunlight into electricity through silicon cells.
Solar Panel Manufacturing Location	China, USA, Malaysia, Vietnam
Average Plant Cost	$20 million – $100 million
Critical Manufacturing Steps	Silicon ingot → wafer → cell → module assembly
Quality Control	Includes thermal cycling, humidity, and mechanical stress tests
Solar Panel Components	– Photovoltaic Cells: Silicon (monocrystalline or polycrystalline) to convert sunlight to electricity. – Glass Cover: Protects cells from environmental damage. – Encapsulation Layer: Binds cells and insulates. – Backsheet: Protects the panel from water and damage. – Frame: Ensures structural integrity.
Cost Drivers	– Plant & Machinery: $10 million – $50 million – Raw Materials: Varies by capacity – Labour & Operating Costs: Vary by location – Certifications & Testing: $1 million – $5 million
DIY Solar Panels	Not recommended for most individuals due to advanced technology and safety concerns. For engineers or hobbyists with proper facilities, it can be a rewarding project.
Key Benefits of Commercial Solar Panels	High efficiency, durability, stable performance, and strong after-sales service.
Top Manufacturers	Growatt and other companies providing high-quality, efficient solar panels.
Average Manufacturing Timeline	1-2 months for large-scale production.
Packaging & Shipping	Panels are packaged for protection and shipped to distributors/installers for installation.

How Solar Panels Work

Before diving into how solar panels are made, it is essential to understand how solar panels work. Essentially, solar panels produce electricity from sunlight via the photovoltaic effect. When sunlight strikes the solar cells—made up primarily of silicon—it excites electrons, creating an electric current. The current is then collected and used to power houses, businesses, and electronics.

What are Solar Panels Made Of and How Do They Work?

What are solar panels made of? In essence, they consist of several key components:

Component	Material	Function
Photovoltaic Cells	Silicon (polycrystalline or monocrystalline)	Convert sunlight to electricity
Glass Cover	Tempered glass	Protects cells from environmental damage
Encapsulation Layer	Ethylene vinyl acetate (EVA)	Binds cells and insulates
Backsheet	Polymer materials	Protects the rear of the panel from water and damage
Frame	Aluminum	Maintains structural integrity

The process of how solar panels are manufactured is achieved by integrating such components with precision to achieve maximum energy output and lifespan.

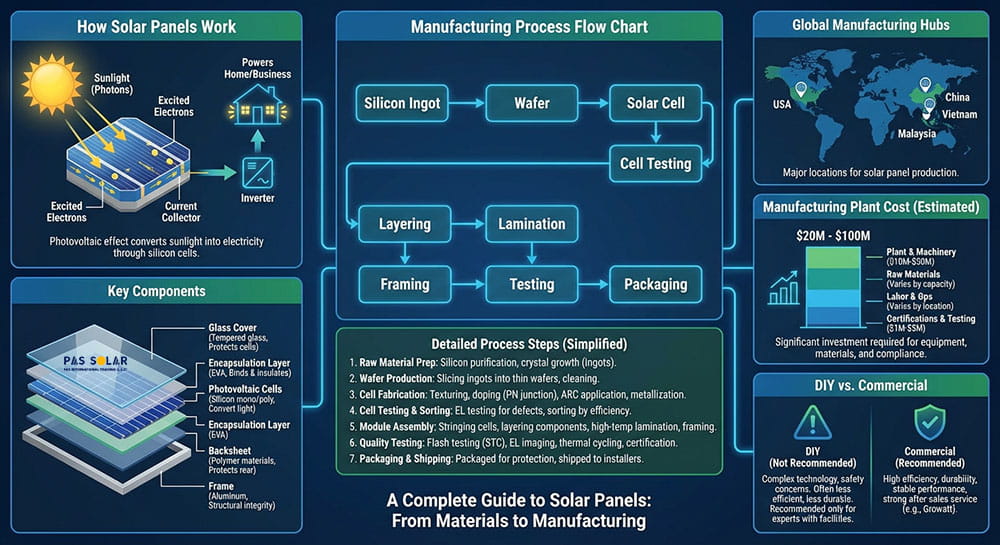

The Solar Panel Manufacturing Process Flow Chart

How solar panels are manufactured can be simplified by being aware of the typical manufacturing process flow chart:

Silicon Ingot → Wafer → Solar Cell → Cell Testing → Layering → Lamination → Framing → Testing → Packaging

     1- Raw Material Preparation

• Silicon Ingot Production (for crystalline panels):

• • • Purification of metallurgical-grade silicon → Polysilicon → Crystal growth (Czochralski or Float Zone) → Silicon ingots.
• Thin-Film Material Prep (for thin-film panels):

• • • Deposition materials like CdTe, CIGS, or amorphous silicon.



     2- Wafer Production (for crystalline silicon panels)

• Ingot slicing into thin wafers using wire saws.
• Wafer cleaning and polishing.



     3- Cell Fabrication

• Texturing: Surface etching to reduce reflectivity.
• Doping: Phosphorus diffusion (n-type) or boron (p-type) to create PN junction.
• Anti-Reflective Coating (ARC): Applied via PECVD.
• Metallization: Screen-printing of silver busbars and electrodes.
• Firing: High-temperature sintering to form electrical contacts.



     4- Cell Testing & Sorting

• Electroluminescence (EL) testing to check defects.
• Sorting cells by efficiency and power output.



     5- Module Assembly

• Stringing: Soldering cells into strings.
• Layering:

• • • Glass (front cover) → EVA encapsulant → Solar cells → EVA → Backsheet (or glass for bifacial).
• Lamination: Heating to bond layers (140–150°C).
• Framing: Aluminium frame attachment (optional for some thin-film panels).
• Junction Box: Installation for electrical connections.



     6- Quality Testing

• Flash testing (STC: Standard Test Conditions).
• Insulation resistance, EL imaging, and thermal cycling tests.
• Certification (e.g., IEC 61215, UL 1703).



     7- Packaging & Shipping

• Packaged for protection and shipped to distributors/installers.

Where Are Solar Panels Made?

Where are solar panels manufactured? China, the US, Vietnam, and Malaysia have huge plants. The biggest solar panel manufacturer is China, with many large-scale factories that manufacture the panels on an economy of scale, as well as with the latest technology.

Solar Panel Manufacturing Plant Cost

If you are thinking of entering the business, you should be knowledgeable about the solar panel plant cost. Establishing a plant entails a huge investment in equipment, raw materials, labour, quality control facilities, and environmental compliance.

While understanding how solar panels are made is essential, it’s also important to consider the solar panel inverter cost, as this is a crucial component in converting the electricity generated by the panels into usable power for your home or business.

Key Cost Drivers	Tentative Range
Plant & Machinery	$10 million – $50 million
Raw Materials (Silicon, Glass, Metals)	Varies with the capacity
Labor & Operating Costs	Vary by location
Certifications & Testing	$1 million – $5 million
Total Estimated Cost	$20 million – $100 million

These range extensively depending on capacity and technology. Lower-capacity producers are cheaper but need to meet the same standards of quality and efficiency as high-end brands.

Should You Make The Solar Panels Yourself?

In spite of the simplicity, should you make your own solar panels? For most individuals and most companies, the response is no. There is advanced technology, demanding manufacturing, and high-quality check criteria involved. DIY solar panel projects generally yield less efficient, less durable panels with more long-term cost and safety concerns.

However, if you’re an experienced engineer or hobbyist with access to proper facilities, and you’re willing to learn and invest, building your own solar panels can be a rewarding project. It’s essential to weigh the cost, effort, and safety considerations before embarking on such a venture.



Why Choose Commercial Solar Panels?

High quality and reliability are most critical in the production of solar panels themselves. Growatt is just one among a number of companies that have established a high benchmark in producing high-quality, durable, and efficient solar panels. Growatt solar panels are high-tech, offer stable performance, and provide high-quality after-sales service.

Comparison of Various Aspects of Solar Panel Manufacturing

Aspect	Details
Main Materials	Silicon (polycrystalline, monocrystalline), polymers, glass, aluminium
Manufacturing Location	Principally China, USA, Malaysia, and Vietnam
Average Plant Cost	$20 million – $100 million
Critical manufacturing steps	Silicon ingot → wafer → cell → module assembly
Quality Control	Thermal cycling, humidity, and mechanical stress tests

Final Thoughts

See how solar panels are made and you’ll be amazed at this great technology. It’s from raw silicon to finished module, each process is all about precision engineering and high-tech processes that yield efficient and durable solar energy products.

Although how solar panels work may sound complicated, the elegance is in the simplicity of the ultimate objective: harnessing sunlight and turning it into energy. Whether installing a solar system or building one yourself, don’t forget that reliability and quality are what really count.

If you are looking for a brand that is dependable, your best option is Growatt. They have high-capacity solar panels and inverters, and they make your solar power investment green and smart.

In summary, the production of solar panels is a challenging endeavour with the engineering and materials science of today. With some notion now of how solar panels are made and what solar panels are made of, you can make informed decisions on your options for energy and perhaps even have an even greater appreciation for the magic of solar technology.
