| On Grid 125 KW Three Phase
5 Years Warranty |
·10 MPPTs fusefree design
·Smart I/V scan and diagnosis
·Intelligent string monitoring
·AC&DC type II SPD
·IP66 protection
$ 3,540
| Datasheet | MAX 100KTL3-X LV | MAX 110KTL3-X LV | MAX 120KTL3-X LV | MAX 125KTL3-X LV |
| Input data (DC) | ||||
| Max. DC voltage | 1100V | |||
| Start voltage | 195V | |||
| Nominal voltage | 600V | |||
| MPP voltage range | 180V-1000V | |||
| No. of MPP trackers | 10 | |||
| No. of PV strings per MPP tracker | 2 | |||
| Max. input current per MPP tracker | 32A | |||
| Max. short-circuit current per MPP tracker | 40A | |||
| Output data (AC) | ||||
| AC nominal power | 100000W | 110000W | 120000W | 125000W |
| Max. AC apparent power | 110000VA | 121000VA | 132000VA | 137500VA |
| Nominal AC voltage (range*) | 220V/380V, 230V/400V (340-440V) | |||
| AC grid frequency (range*) | 50/60 Hz(45~55Hz/55-65 Hz) | |||
| Max. output current | 158.8A@400V
167.1A@380V |
174.6A@400V
183.8A@380V |
190.5A@400V
200.5A@380V |
198.5A@400V
208.9A@380V |
| Adjustable power factor | 0.8leading 0.8lagging | |||
| THDi | <3% | |||
| AC grid connection type | 3W/N/PE | |||
| Efficiency | ||||
| Max.efficiency | 98.8% | |||
| European efficiency | 98.4% | 98.5% | 98.5% | 98.5% |
| MPPT efficiency | 99.9% | |||
| Protection devices | ||||
| DC reverse polarity protection | Yes | |||
| DC switch | Yes | |||
| AC/DC surge protection | Type II / Type II | |||
| Insulation resistance monitoring | Yes | |||
| AC short-circuit protection | Yes | |||
| Ground fault monitoring | Yes | |||
| String detection | Yes | |||
| Anti PID function | Optional | |||
| Arc fault detection (AFCI) | Optional | |||
| General data | ||||
| Dimensions (W / H / D) | 970/640/345mm | |||
| Weight | 84kg | |||
| Operating temperature range | –30°C … +60°C | |||
| Nighttime power consumption | < 1W | |||
| Topology | Transformerless | |||
| Cooling | Smart air cooling | |||
| Protection degree | IP66 | |||
| Relative humidity | 0~100% | |||
| Altitude | 4000m | |||
| DC connection | H4/MC4 (Max.6mm²) | |||
| AC connection | OT Terminal (Max. 240mm²) | |||
| Display | LED/WIFI+APP | |||
| Interfaces: RS485 / USB
/PLC/GPRS/4G/WiFi |
Yes/Yes/Optional/Optional/Optional/Optional | |||
| Warranty: 5 years / 10 years | Yes /Optional | |||
| CE, UKCA, IEC62116, IEC61727, CQC, VDE0126, VFR2019, EN50549-1/-2, C10/C11, UNE206007, G99 CEI 0-21/0-16, N4105, UNE206006,MEA, PEA, KSC8565 | ||||

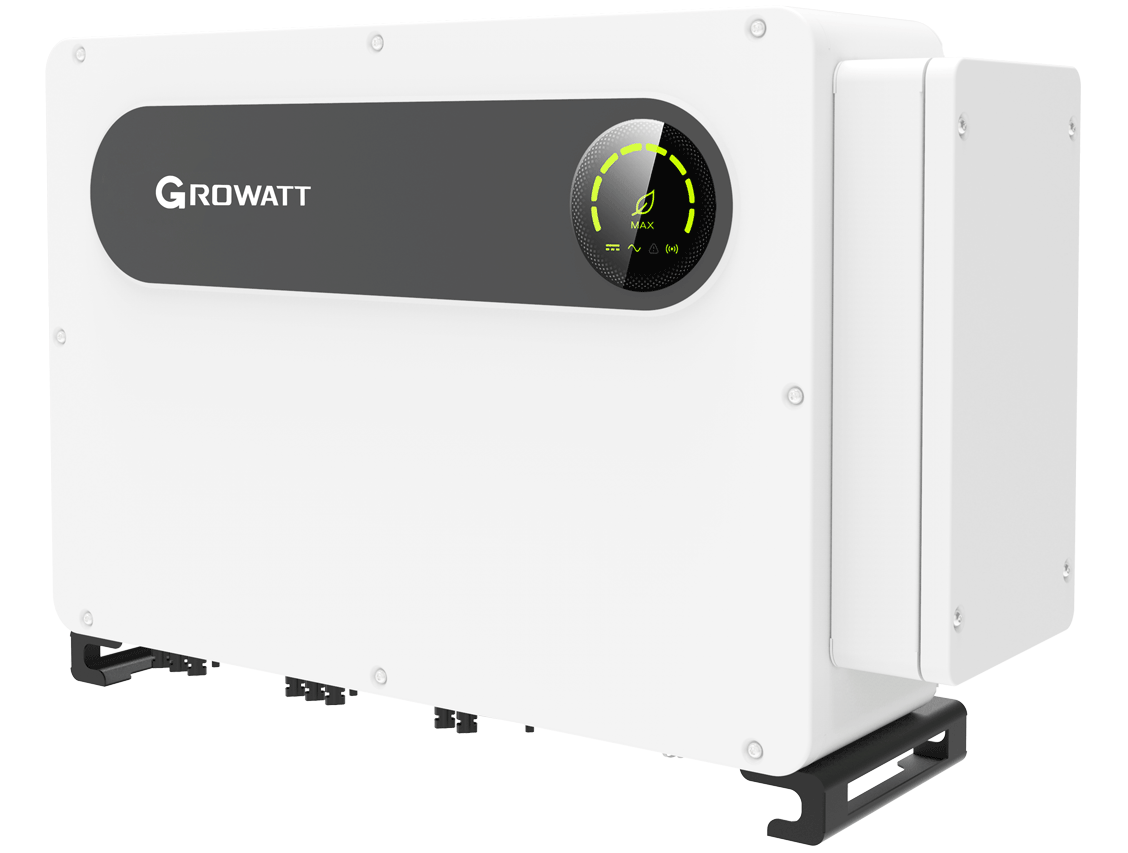

The Growatt Inverter MAX 125KTL3-X LV is a powerful and efficient solution for large commercial and industrial solar projects. With a capacity of 125 kW, it helps you get the most out of your solar panels while reducing electricity costs significantly. If you’re looking to buy a high-quality inverter at a competitive price, this model offers excellent value for your investment.
One of the key advantages of the MAX 125KTL3-X LV is its high efficiency, which means more solar energy is converted into usable electricity. Its durable design ensures reliable performance even in tough conditions, reducing maintenance costs and downtime. This makes it a smart choice for businesses that need a dependable power source for their solar systems.
The inverter also includes smart monitoring features, allowing you to track your system’s performance remotely. This helps detect any issues early and keeps your solar energy production running smoothly. Installation is flexible and straightforward, fitting different project requirements without hassle.
When considering price, the Growatt MAX 125KTL3-X LV balances affordability with advanced technology. Its long-term reliability and energy savings help offset the initial purchase cost, making it a cost-effective choice overall. Plus, Growatt offers solid warranties and global customer support to give you peace of mind.
In summary, if you want to buy a reliable, efficient, and reasonably priced inverter for a large solar installation, the Growatt MAX 125KTL3-X LV is a great option. It combines strong performance, smart features, and durability to help you maximize your solar investment and lower energy bills.
