| Hybrid 75 KW HV
5 Years Warranty |
$ 8,300
| Datasheet | WIT 50K-H WIT 50K-HU | WIT 63K-H WIT 63K-HU | WIT 75K-H WIT 75K-HU | WIT 100K-H WIT 100K-HU |
| Input Data (PV) | ||||
| Max. recommended PV power(for module STC) | 109.2kW | 124.8kW | 156kW | 156kW |
| Start voltage | 195V | |||
| Max. input voltage | 1100V | |||
| Max. open circuit voltage of PV*1 | 1000V | |||
| MPPT nominal voltage/range | 550V,180V~800V | |||
| Max. input current per MPP tracker | 32A | |||
| Max. short-circuit current per MPP tracker | 40A | |||
| No. of PV strings per MPP tracker | 2 | |||
| No. of MPP trackers | 7 | 8 | 10 | 10 |
| Output Data (AC) | ||||
| AC nominal power | 50kW | 63kW | 75kW | 100kW |
| Max. AC apparent power | 55kVA | 69.3kVA | 82.5kVA | 110kVA |
| Nominal AC voltage/range | 380/400/415V,-15%~+10% | |||
| Nominal AC grid frequency/range | 50/60Hz,45-55Hz/55-65Hz | |||
| Max. output current | 83.3A | 105A | 125A | 166.7A |
| Adjustable power factor | -1…+1 | |||
| THDi | <3% (@100% load) | |||
| AC grid connection type | 3P3W+PE/3P4W+PE | |||
| Input Data (AC) | ||||
| AC nominal power | 50kW/100kW | 63kW/126kW | 75kW/150kW | 100kW/200kW |
| Max. AC apparent power 55kVA/100kVA | 69.3kVA/126kVA | 82.5kVA/150kVA | 110kVA/200kVA | |
| Nominal AC voltage/range | 380/400/415V,-15%~+10% | |||
| Nominal AC grid frequency/range 50/60Hz,45-55Hz/55-65Hz | ||||
| Max. input current | 83.3A/151.5A | 105A/190.9A | 125A/227.3A | 166.7A/303A |
| Battery Data (DC) | ||||
| Continuous charging and discharging power | 56.7kW | 71.4kW | 85.1kW | 113.5kW |
| Battery voltage range | 600-1000V (for 3P3W) / 680-1000V (for 3P4W) | |||
| Recommended battery voltage | 768V | |||
| Max charging and discharging current | 83.3A | 105A | 125A | 167A |
| BMS communication | RS485/CAN | |||
| Backup Power (AC)*2 | ||||
| Rated AC output power | 50kW | 63kW | 75kW | 100kW |
| Max. AC apparent power | 60kVA | 75.6kVA | 90kVA | 120kVA |
| Rated AC output voltage | 220V/230V/240V(L-N),380V/400V/415V(L-L) | |||
| Nominal AC output frequency | 50/60 Hz | |||
| Load connection | 3P3W+PE/3P4W+PE | |||
| Max. output current | 90.9A | 114.5A | 136.4A | 181.8A |
| THDv | <3% (Linear load) | |||
| Load unbalance | 100% three-phase unbalanced | |||
| Overload capacity | ≤110%: Continues; 110%~120%: <10min; >120%: 200ms | |||
| On/off grid transfer time | ≤20ms | |||
| Efficiency | ||||
| Max. efficiency | 98.2% | |||
| Protection Devices | ||||
| PV reverse polarity protection | Yes | |||
| Battery reverse protection | Yes | |||
| AC/DC surge protection | Type II | |||
| Insulation resistance monitoring | Yes | |||
| Ground fault monitoring | Yes | |||
| Grid monitoring | Yes | |||
| Residual-current monitoring unit | Yes | |||
| AC short-circuit protection | Yes | |||
| Strings monitoring | Yes | |||
| Anti-islanding protection | Yes | |||
| PID protection | Yes | |||
| AFCI function | Opt | |||
| General | ||||
| Dimensions (W/H/D) | 820/1350/510mm | |||
| Weight | 153kg | 153kg | 160kg | 160kg |
| Operating temperature range | –30 °C~60 °C (> 50°C, derating) | |||
| Relative humidity | 0~100% | |||
| Altitude | 4000m | |||
| Topology | Transformerless | |||
| Cooling | Smart air cooling | |||
| IP degree | IP66 | |||
| Display | OLED+LED/WiFi+APP | |||
| Interfaces: RS485/CAN/USB | Yes | |||
| Interfaces: WIFI/LAN | Opt | |||
| Warranty (5/10 years) | Yes/Opt | |||
| EN 62920-2017, IEC/EN 62477-1, IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116, IEC 61727, G99:2020, EN 50549-1, VDE 4105, NRS 097-2-1 | ||||

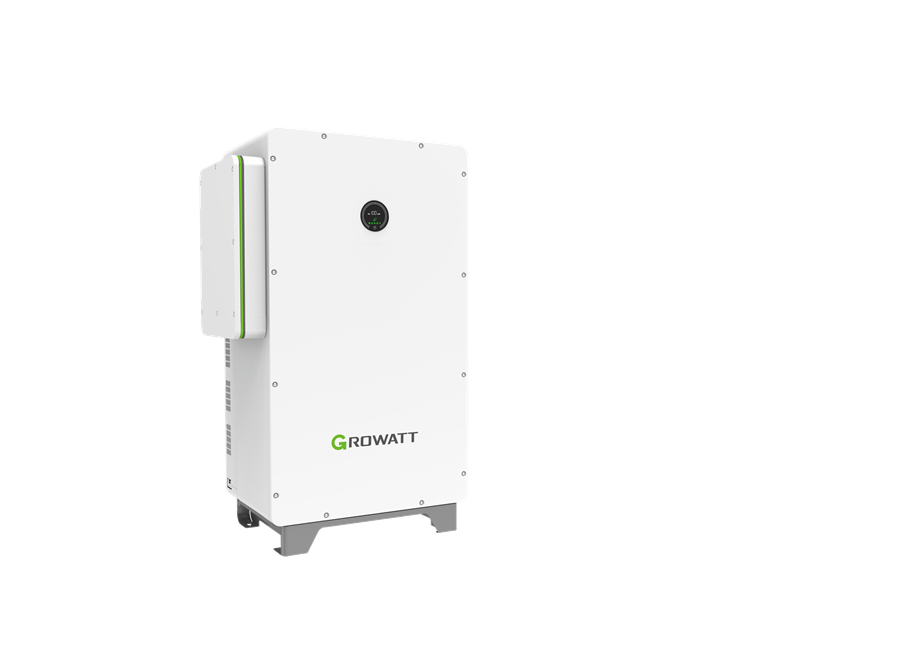

As an advanced on grid solar inverter, the Growatt WIT 75KTL3-H-UP LV seamlessly integrates with existing power systems, enabling efficient grid-tied energy conversion. Its multiple MPPTs and smart grid-support functions make it ideal for maximizing solar generation while ensuring stability and compliance with utility standards. Perfect for commercial-scale installations aiming for energy independence.
The Growatt Inverter WIT 75KTL3-H-UP LV offers dependable performance for commercial and industrial solar projects. It provides up to 75 kW of power output with excellent efficiency, helping you reduce electricity costs and maximize clean energy use. This three-phase inverter comes with intelligent monitoring and easy integration into different systems. Its low-voltage design ensures stable operation and improved safety. With Growatt, you get advanced technology and reliable solar performance you can trust.
