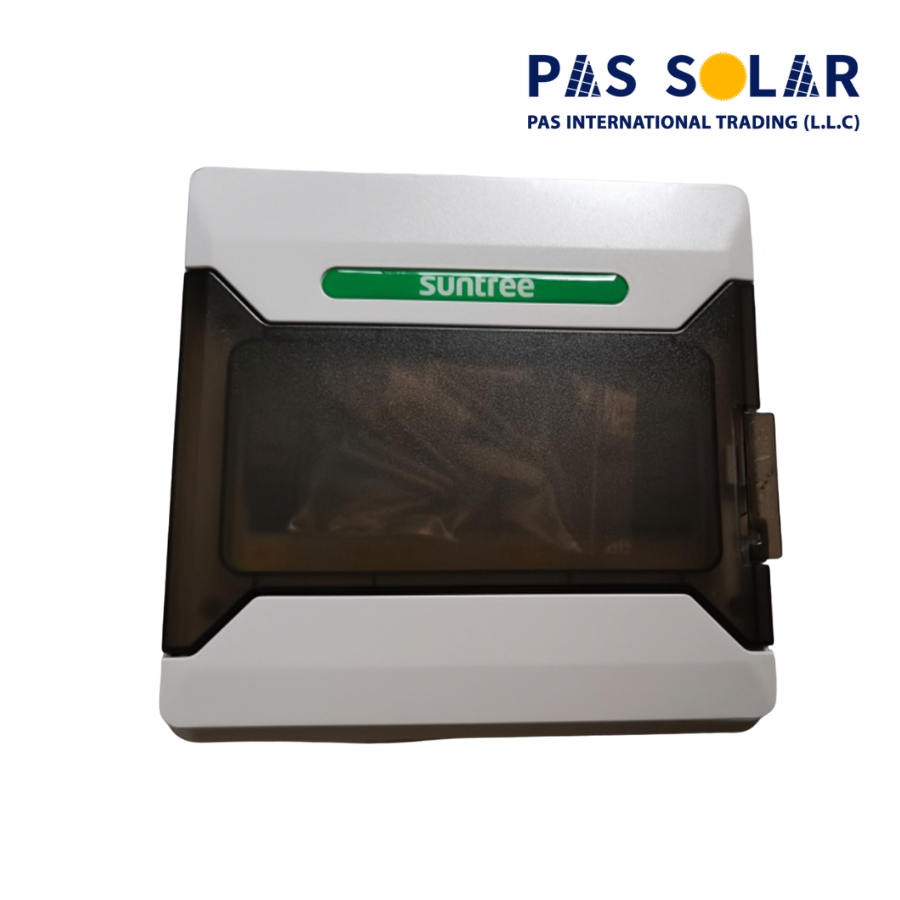

SUNTREE PMHA-65 Plastic Distribution Box

Technical Specifications

Parameter	Specification
Product Series	PMHA-65
Product Type	Plastic Distribution Box / Electrical Enclosure
Protection Degree	IP65
Enclosure Material	ABS Engineering Flame-Retardant Plastic
Waterproof Protection	Yes
Dustproof Protection	Yes
Installation	Electrical Distribution / Wall Mounting Enclosure
Lockable Design	Yes
Knock-Out Holes	Pre-Drilled Bottom Holes
Internal Terminal Blocks	Optional
Additional Cable Holes	Can Be Drilled According to Customer Requirements
Internal Compatibility	Compatible with Most Products on the Market
Application	Indoor and Outdoor Electrical Installations

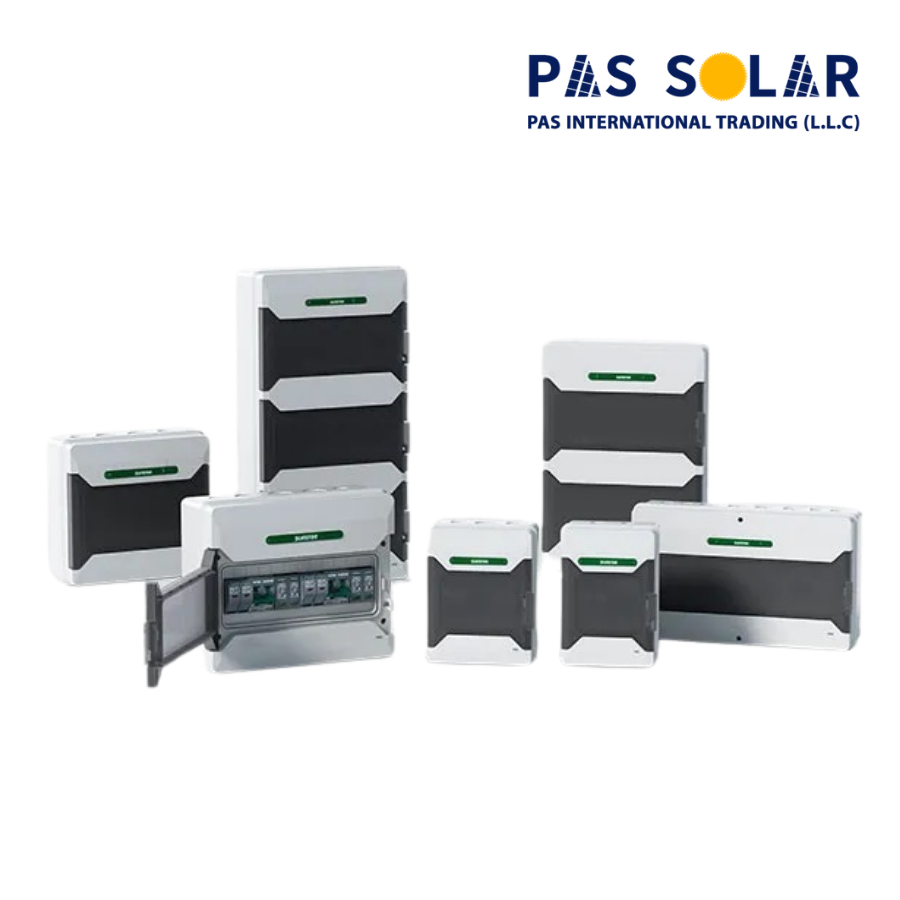

Available Models

The PMHA-65 is available in different configurations according to the number of modules or internal equipment that needs to be installed. Market listings show configurations such as PMHA-65/4, PMHA-65/8, PMHA-65/12 and PMHA-65/24. The exact configuration should be selected according to the electrical components and installation requirements.

Model	Configuration
PMHA-65/4	4-Way / 4-Module Distribution Box
PMHA-65/8	8-Way / 8-Module Distribution Box
PMHA-65/12	12-Way / 12-Module Distribution Box
PMHA-65/24	24-Way / 24-Module Distribution Box

Protection Characteristics

Protection Feature	Specification
Water Protection	IP65
Dust Protection	IP65
Flame Retardancy	ABS Engineering Flame-Retardant Plastic
Unauthorized Access Protection	Lockable Design
Cable Entry	Pre-Drilled Knock-Out Holes
Additional Cable Entry	Custom Drilling Available
Outdoor Installation	Suitable
Terminal Management	Optional Internal Terminal Blocks

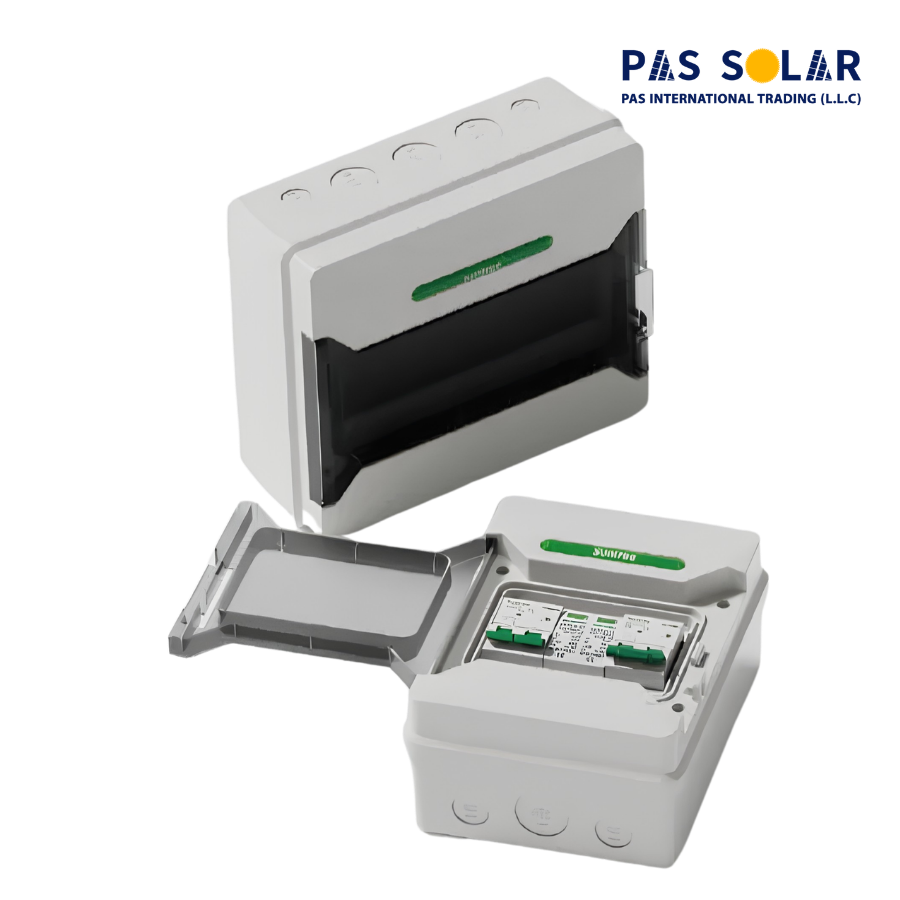

Design and Construction

The PMHA-65 is constructed from ABS engineering flame-retardant plastic, combining electrical insulation with protection against environmental exposure. Its IP65 rating provides protection against dust ingress and water jets, making the enclosure suitable for outdoor electrical distribution applications.

The bottom of the enclosure incorporates pre-drilled knock-out holes for cable entry. Additional holes can also be drilled according to project requirements. The lockable enclosure helps restrict unauthorized access to the electrical equipment installed inside.

What Projects Is the SUNTREE PMHA-65 Suitable For?

The SUNTREE PMHA-65 Plastic Distribution Box is suitable for electrical distribution and protection applications where a weather-resistant enclosure is required. SUNTREE specifically presents the PMHA-65 as an outdoor-capable distribution box and recommends it alongside products such as the SMEI Series, SMEP Series, SCB8-63 MCB and SCB8-63H AC Circuit Breakers.

What is the SUNTREE PMHA-65?

The SUNTREE PMHA-65 is an IP65 plastic electrical distribution box designed to house and protect electrical components in indoor and outdoor installations.

What is the protection rating of the PMHA-65?

The PMHA-65 has an IP65 protection rating, providing protection against dust and water exposure and making it suitable for outdoor electrical installations.

What material is the PMHA-65 made from?

The enclosure is manufactured from ABS engineering flame-retardant plastic, which provides an insulated and safer housing for electrical components.

Is the PMHA-65 suitable for outdoor use?

Yes. SUNTREE specifically describes the PMHA-65 as having an IP65 waterproof and dustproof rating and states that it is suitable for outdoor use.

Does the PMHA-65 have a lock?

Yes. The PMHA-65 features a lockable design intended to help prevent unauthorized access to the electrical equipment inside the enclosure.

Does the PMHA-65 include terminal blocks?

Internal terminal blocks are optional. They can be used to provide more convenient and organized management of neutral and grounding wires.

Does the PMHA-65 have cable entry holes?

Yes. The bottom of the enclosure includes pre-drilled knock-out holes. Additional holes can also be drilled according to customer requirements.
