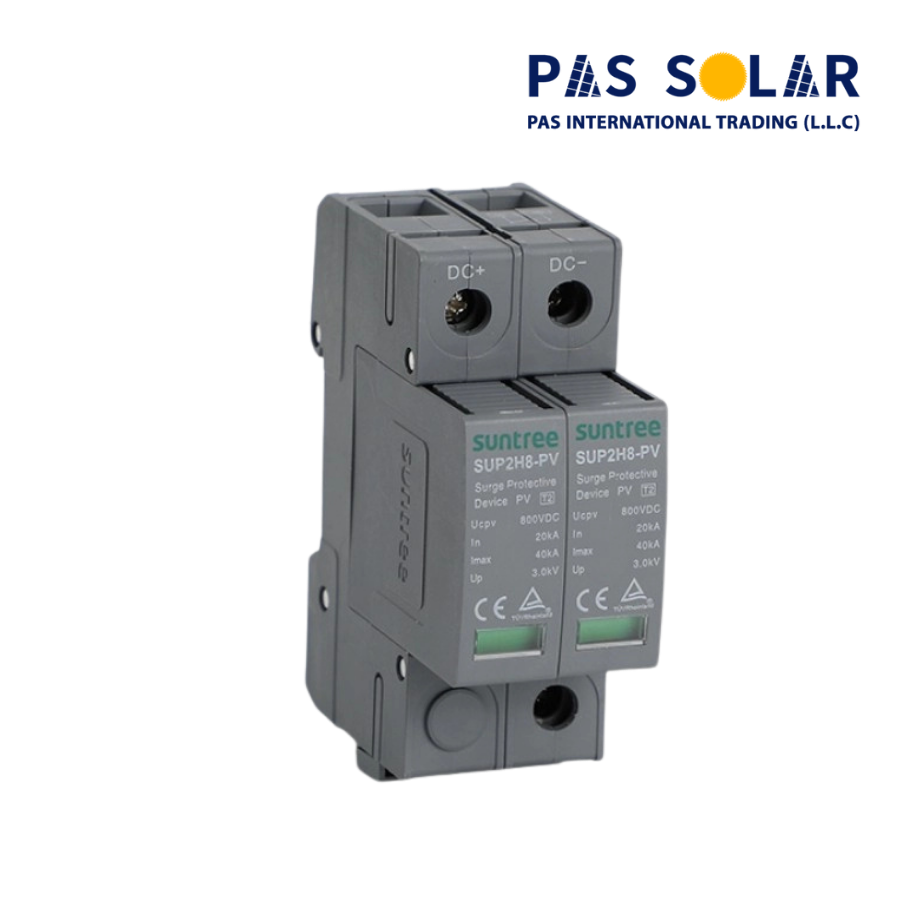

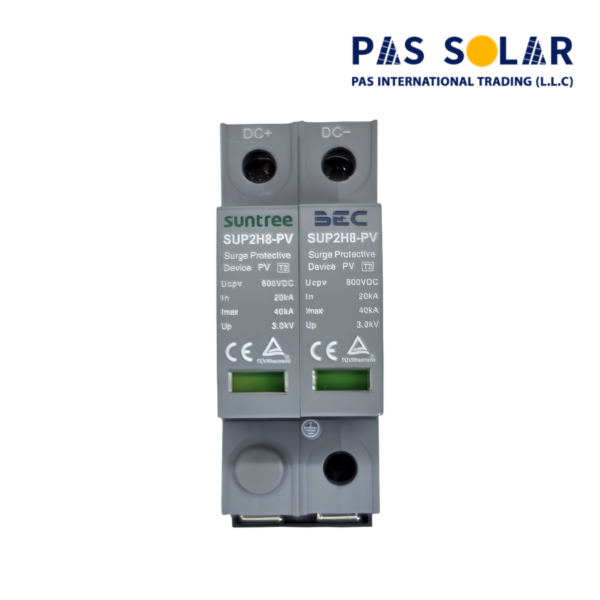

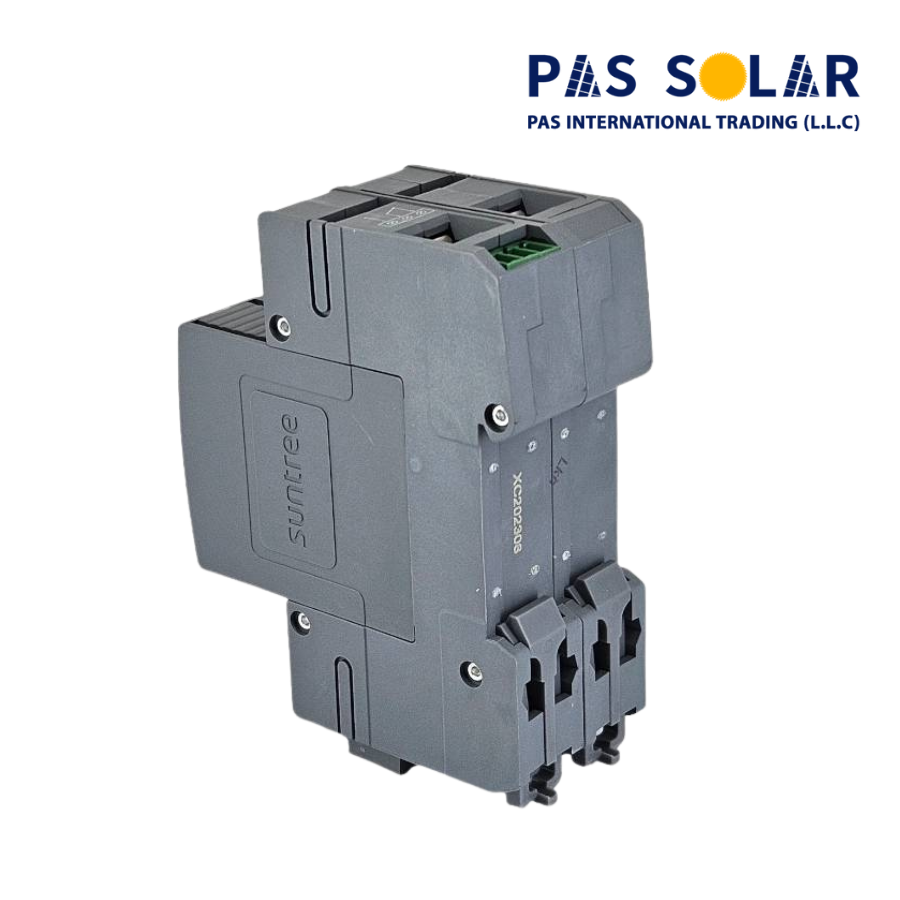

| Parameter | Specification |
|---|---|
| Product Model | SUNTREE SUP2H-PV |
| Product Type | DC Surge Protective Device (DC SPD) |
| SPD Type | Type 2 |
| Pole Configuration | 2P |
| Maximum Continuous Operating Voltage (Ue) | 500VDC / 600VDC / 800VDC |
| Maximum Discharge Current (Imax) | 20kA / 40kA (8/20 μs) |
| Protection Level (Up) | 2.8kV / 2.8kV / 3.0kV |
| Service Temperature | -40°C to +70°C |
| Relative Humidity | ≤95% at 25°C |
| Installation Mode | 35mm Standard DIN Rail |
| Window Indication | Green: Normal / Red: Failure |
| Ingress Protection | IP20 |
| Leakage Current | ≤20μA |
| Module Design | Plug-in / Replaceable |
| Remote Signaling | Optional Floating Changeover Contact |
| Disconnection | Combined Disconnection |
| Arc Protection | Short-Circuiting Device with Safe Electrical Isolation |
| Model | Poles | Maximum Continuous Operating Voltage | Maximum Discharge Current |
| SUP2H-PV | 2P | 500VDC / 600VDC / 800VDC | 20kA / 40kA |
| Product Model | Available Operating Voltage | Protection Level (Up) |
| SUP2H-PV | 500VDC | 2.8kV |
| SUP2H-PV | 600VDC | 2.8kV |
| SUP2H-PV | 800VDC | 3.0kV |
| Parameter | Specification |
| Maximum Discharge Current (Imax) | 20kA / 40kA |
| Test Waveform | 8/20 μs |
| Protection Level (Up) | 2.8kV / 2.8kV / 3.0kV |
| Parameter | Specification |
| Installation | 35mm Standard DIN Rail |
| Pole Configuration | 2P |
| Module Type | Plug-in |
| Module Replacement | Easy Replacement |
| Installation Design | DIN Rail Mounting |
| Parameter | Specification |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | ≤95% at 25°C |
| Ingress Protection | IP20 |
| Installation Environment | DC / PV Electrical Enclosures |
| Protection Function | Specification |
| Surge Protection | Transient Overvoltage Protection |
| Maximum Discharge Current | 20kA / 40kA |
| Arc Protection | Short-Circuiting Device with Safe Electrical Isolation |
| Disconnection | Combined Disconnection |
| Visual Status Indication | Green: Normal / Red: Failure |
| Remote Signaling | Optional Floating Changeover Contact |
| Thermal Management | Quick Heat Dissipation Design |
| Module Replacement | Plug-in Replaceable Module |
| Feature | Description |
| Plug-in Clips | Allow easy and quick replacement of the protection module |
| Flash Barrier | Helps prevent arc propagation during current impact |
| Visual Indicator | Green indicates normal operation, while red indicates module failure and replacement requirement |
| Remote Contact Signaling | Optional floating changeover contact for remote status monitoring |
| Combined Disconnection | Provides integrated disconnection functionality |
| Safe Electrical Isolation | Helps reduce fire damage caused by DC arcs |
| Heat Dissipation | Designed to quickly dissipate heat and reduce service temperature |

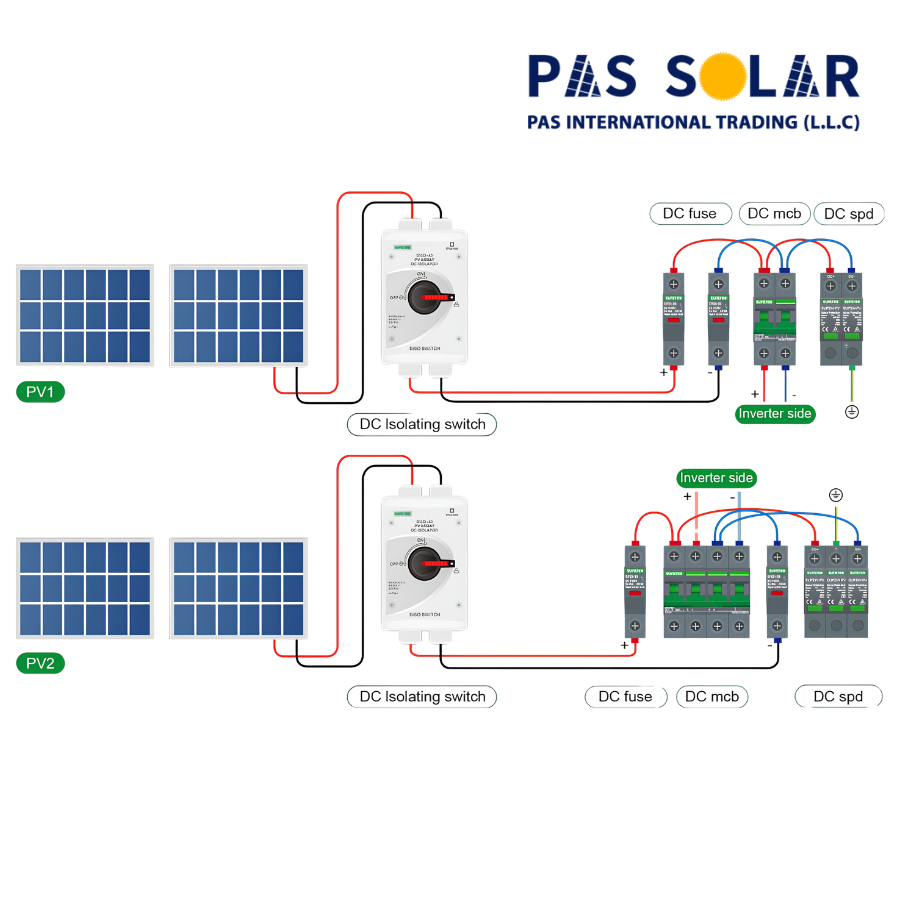

The SUNTREE SUP2H-PV should be installed on a 35mm standard DIN rail. When installing the PV-SPD inside an enclosure, a suitable electrical insulator should be used to maintain a minimum 10mm safety distance between the surge protective device and other grounded parts in the housing.
The SUNTREE SUP2H-PV is designed for DC applications with maximum continuous operating voltages of 500VDC, 600VDC, and 800VDC. The appropriate version should be selected according to the operating voltage of the PV or DC system.
The SUP2H-PV is available with maximum discharge current ratings of 20kA and 40kA, based on the applicable product configuration. The discharge current is specified using the 8/20 μs test waveform.
The SUNTREE SUP2H-PV is a 2-pole (2P) DC surge protective device, designed for DC and photovoltaic electrical protection applications.
The protection level depends on the rated operating voltage. The page specifies 2.8kV for 500VDC, 2.8kV for 600VDC, and 3.0kV for 800VDC applications.
