| Parameter | Specification |
|---|---|
| Product Model | SUNTREE SRD-30 |
| Product Type | PV DC Fuse / Thermal DC Fuse |
| Application | Solar PV / Low-Voltage DC |
| Rated Service Voltage (Ue) | 1100V DC |
| Rated Insulation Voltage (Ui) | 1200V |
| Rated Service Current (Ie) | 63A |
| Available Fuse Current Range | 1A–30A |
| Rated Impulse Withstand Voltage (Uimp) | 6kV |
| Rated Limiting Short-Circuit Current | 30kA |
| Number of Poles | 1P |
| Fuse Size | φ10 × 38mm |
| Rated Power Dissipation | ≤4W |
| Protection Degree | IP20 |
| Usage Category | PV-0 |
| Material | PA66 Flame-Retardant Material |
| Safety Standards | IEC/EN 60947-1, IEC/EN 60947-3 |
| Certifications | TUV, CE, IEC |
The SUNTREE SRD-30 supports different fuse current ratings within the same fuse holder frame, from 1A to 30A.
| Product Series | Available Fuse Ratings |
| SRD-30 | 1A–30A |
The appropriate fuse rating should be selected according to the PV string current, system design and protection requirements.
| Parameter | Specification |
| Rated Service Voltage (Ue) | 1100V DC |
| Rated Insulation Voltage (Ui) | 1200V |
| Rated Service Current (Ie) | 63A |
| Rated Impulse Withstand Voltage (Uimp) | 6kV |
| Rated Limiting Short-Circuit Current | 30kA |
| Rated Power Dissipation | ≤4W |
| Fuse Dimensions | φ10 × 38mm |
| Poles | 1P |
| Usage Category | PV-0 |
| Protection Function | Specification |
| Overload Protection | Yes |
| Short-Circuit Protection | Yes |
| PV String Protection | Yes |
| Fuse Replacement | Quick-Change Plug Design |
| Fuse Status Indication | Indicator Window |
| Short-Circuit Protection Capacity | 30kA Rated Limiting Short-Circuit Current |
| Fuse Core | Replaceable |

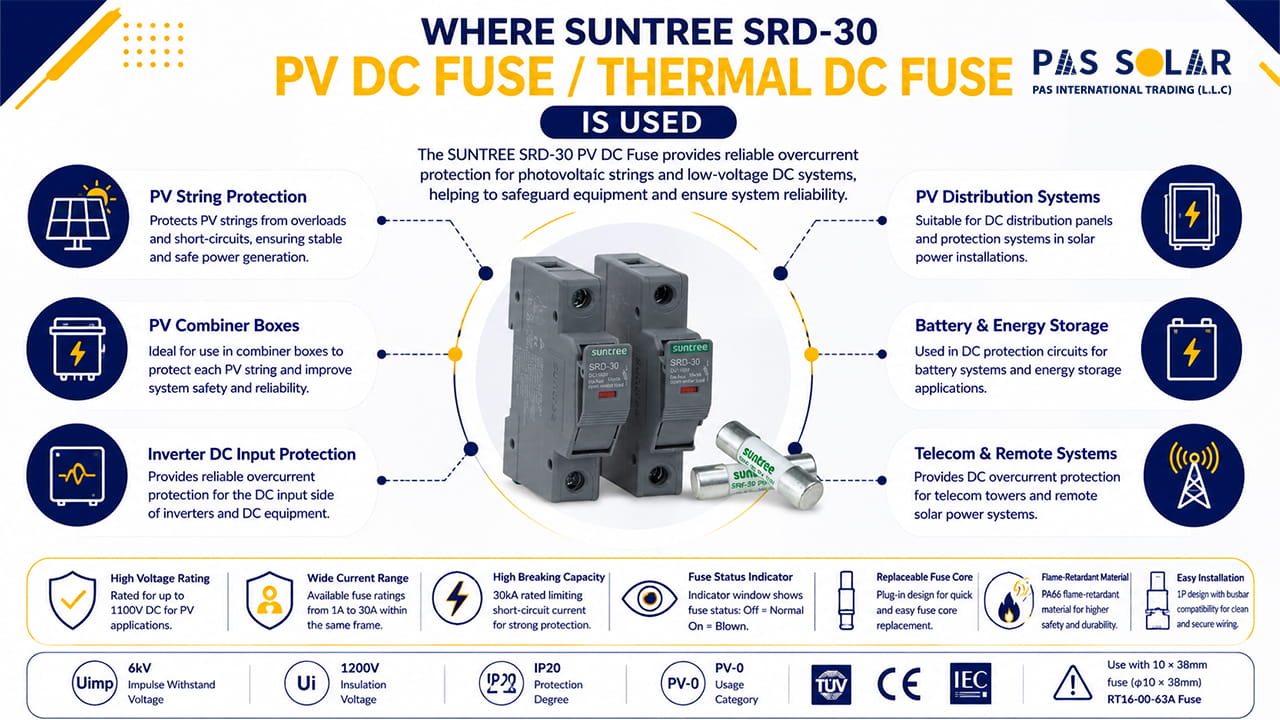

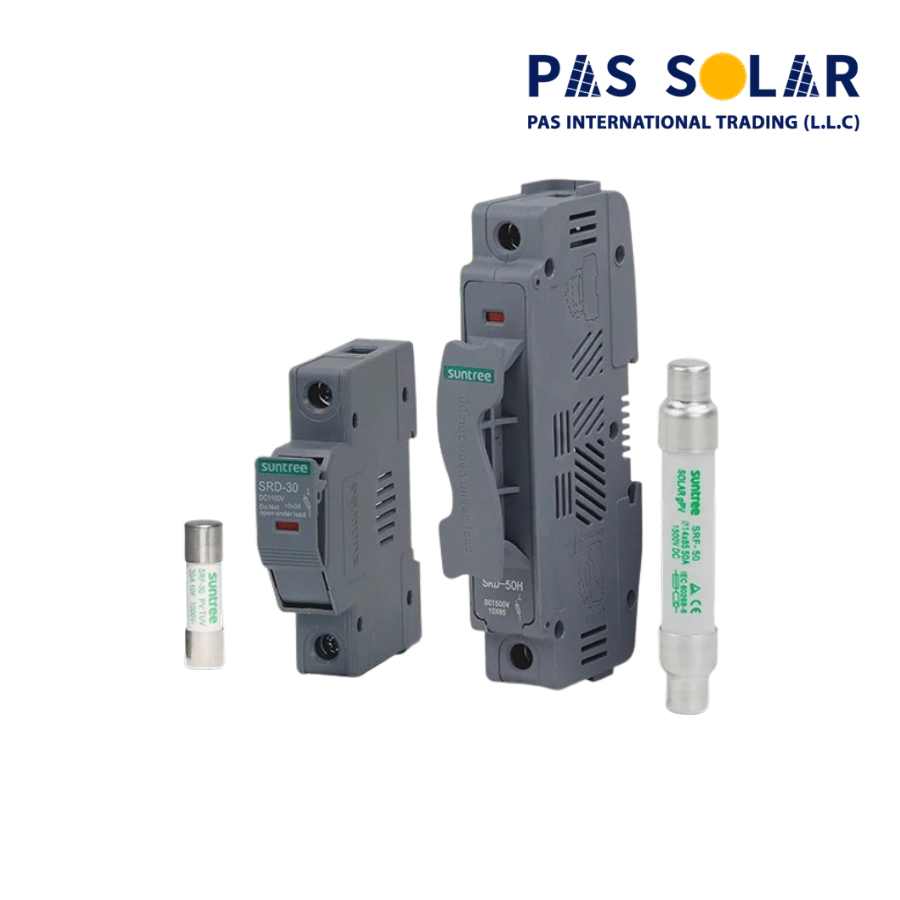

The SRD-30 is designed to protect photovoltaic strings from fault conditions by interrupting excessive current caused by overloads or short circuits.
The SRD-30 uses a plug-in fuse design that allows the fusible core to be replaced quickly. This design can simplify maintenance and reduce downtime during fuse replacement.
The fuse holder is manufactured using PA66 flame-retardant material. The integrated indicator window provides a visual indication of fuse status: the indicator light turns on when the fuse core has blown.
The product also incorporates a busbar design intended to provide reliable and organized wiring within photovoltaic protection systems.

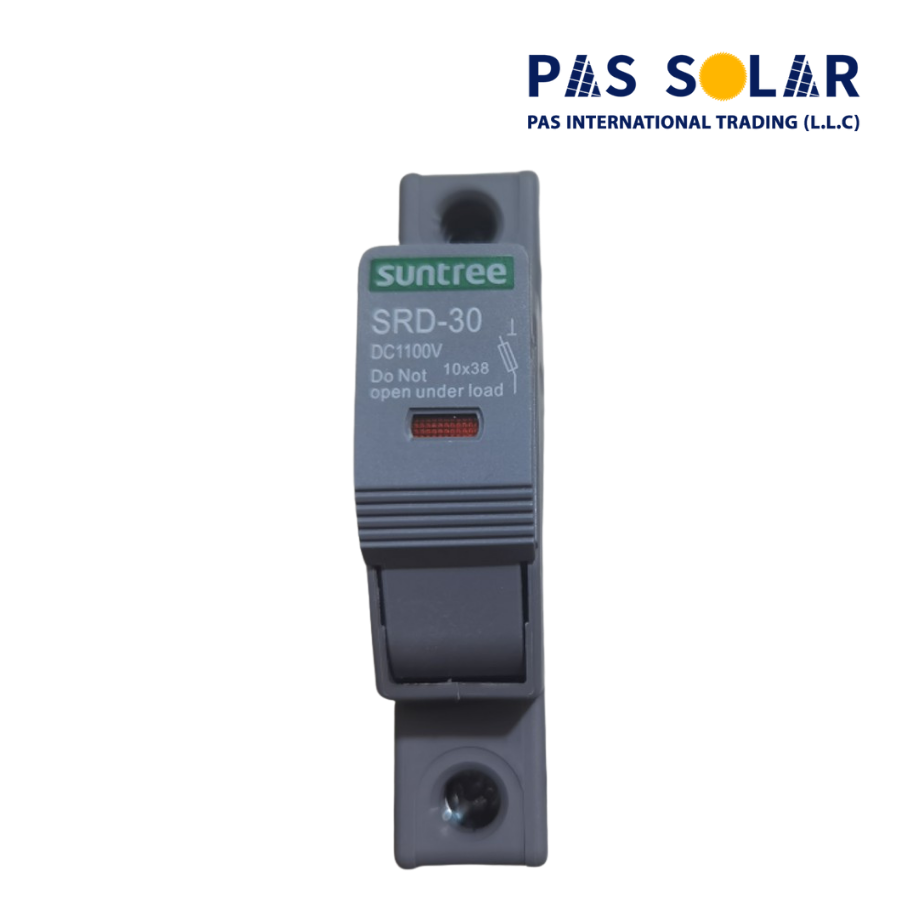

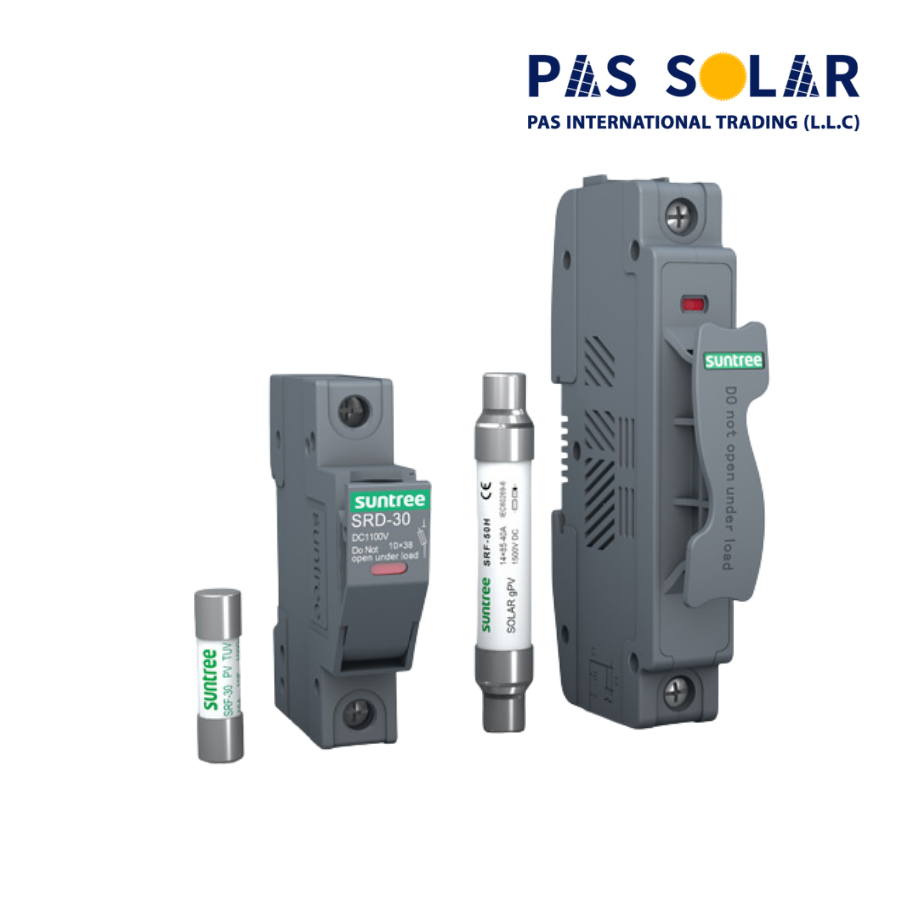

One of the practical features of the SRD-30 is its built-in fuse status indicator window.
| Fuse Condition | Indicator Status |
| Fuse Normal | Indicator Off |
| Fuse Blown | Indicator On |
This visual indication allows technicians to identify a blown fuse more easily during inspection and maintenance.
The SRD-30 uses a 1P configuration and accommodates a φ10 × 38mm fuse. Its busbar-oriented design is intended to provide clean and reliable wiring in PV distribution and string protection applications.
The fuse should be selected according to the electrical characteristics of the protected PV string and installed in accordance with the applicable electrical installation requirements.
The SUNTREE SRD-30 is a 1100V DC photovoltaic fuse designed to protect PV strings against overload and short-circuit conditions.
The SRD-30 has a rated service voltage of 1100V DC and a rated insulation voltage of 1200V.
The SRD-30 supports fuse current ratings from 1A to 30A within the same current frame. The fuse holder itself has a rated service current of 63A.
The Technical Reference specifies a rated limiting short-circuit current of 30kA.
The SUNTREE SRD-30 is a thermal DC fuse designed specifically for low-voltage solar PV applications.

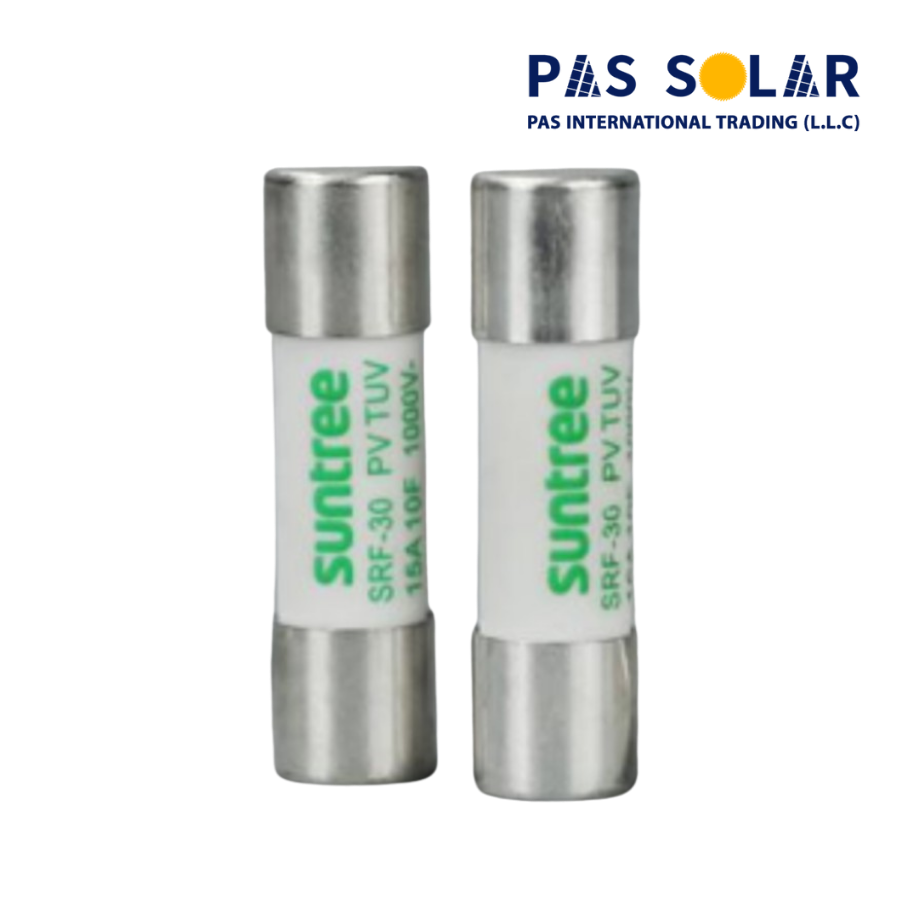

The SRD-30 is designed for φ10 × 38mm fuse elements.
Yes. It features an indicator window that shows the fuse status. The indicator illuminates when the fuse core has blown.
Yes. The SRD-30 uses a plug-in design with a replaceable fusible core, allowing quick replacement.
Yes. The SRD-30 is designed to provide both overload protection and short-circuit protection for photovoltaic systems.
