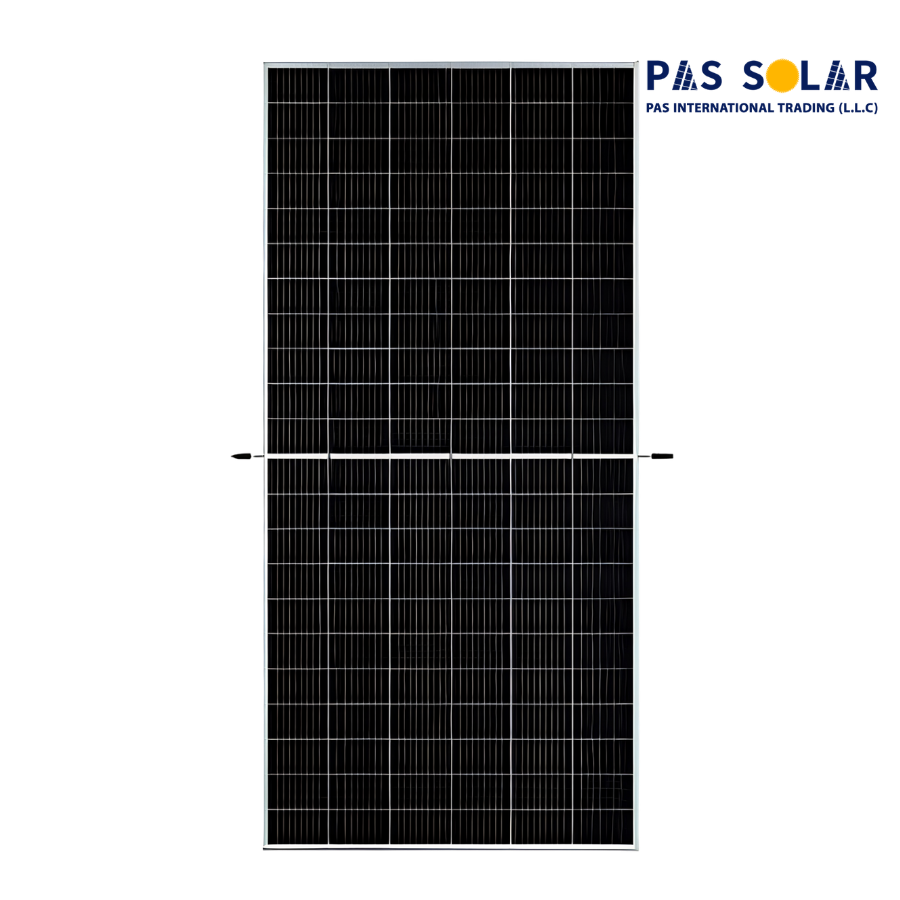

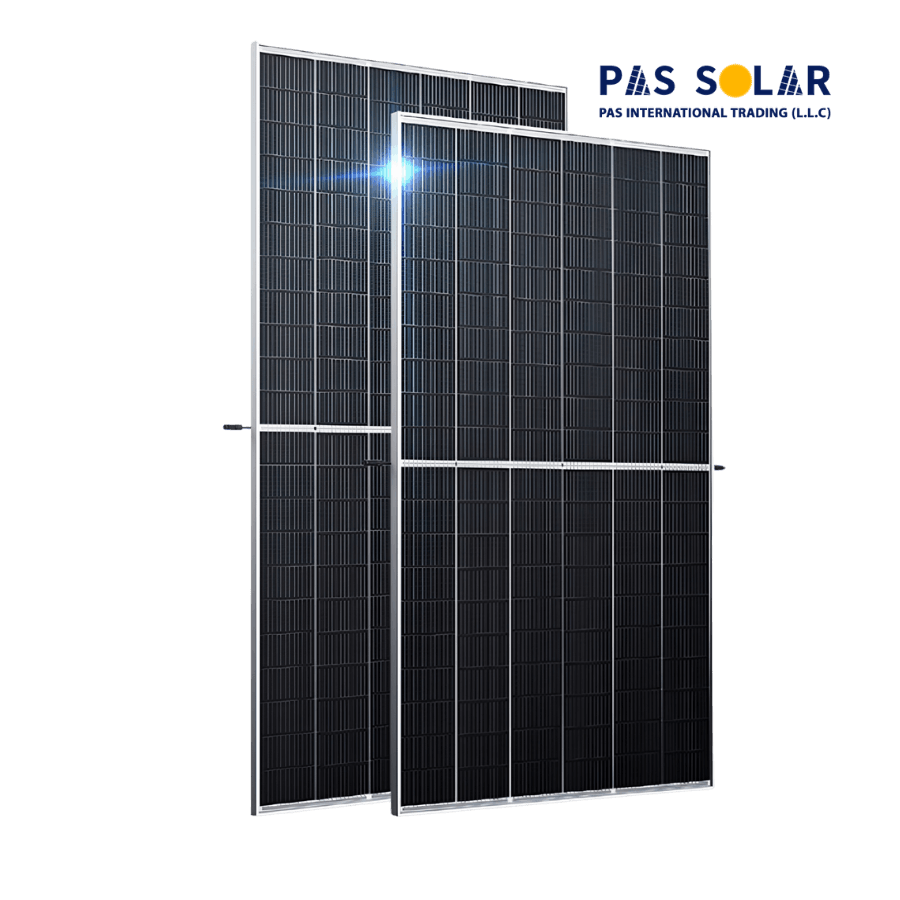

Designed for utility-scale solar farms, commercial and industrial (C&I) installations, and other high-performance photovoltaic systems, the Trina Solar Vertex N 635W module combines advanced N-type cell technology with a durable bifacial glass-to-glass structure. Built on Trina Solar’s latest Vertex N platform, this module delivers up to 635W of rated power while achieving 23.5% module efficiency, making it an excellent choice for projects focused on maximizing energy production and lowering the overall cost of electricity.
Its N-Type i-TOPCon cell technology helps reduce long-term power degradation, improves temperature performance, and enhances energy generation under low-irradiance conditions. The bifacial dual-glass construction also increases durability while allowing additional energy harvesting from reflected light, making the module suitable for demanding environmental conditions.
| Specification | Value |
|---|---|
| Cell Technology | N-Type i-TOPCon |
| Cell Type | Monocrystalline |
| Module Structure | Bifacial Dual Glass |
| Number of Cells | 132 Half-Cells |
| Module Efficiency | Up to 23.5% |
| Parameter | Value |
| Cell Type | N-Type Monocrystalline |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 33 kg |
| Cell Count | 132 |
| Front Glass | 2.0 mm AR-Coated Heat-Strengthened Glass |
| Rear Glass | 2.0 mm Heat-Strengthened Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Connectors | MC4 EVO2 / TS4 Plus |
| Cable Size | 4 mm² |
| Modules per Pallet | 36 |
| Modules per 40HQ Container | 720 |
| Parameter | Value |
| Rated Power (Pmax) | 635 W |
| Open Circuit Voltage (Voc) | 49.10 V |
| Maximum Power Voltage (Vmp) | 40.84 V |
| Short Circuit Current (Isc) | 16.44 A |
| Maximum Power Current (Imp) | 15.55 A |
| Module Efficiency | 23.5% |
| Parameter | Value |
| Power Tolerance | 0 ~ +5 W |
| Temperature Coefficient of Isc | +0.04%/°C |
| Temperature Coefficient of Voc | -0.24%/°C |
| Temperature Coefficient of Pmax | -0.29%/°C |
| NOCT | 43 ± 2°C |
| Parameter | Value |
| Maximum System Voltage | 1500 V DC |
| Operating Temperature | -40°C to +70°C |
| Maximum Series Fuse Rating | 35 A |
| PID Resistance | Supported |
| LID / LeTID Resistance | Supported |
| Feature | Value |
| Rated Output | 635 W |
| Module Efficiency | 23.5% |
| Voc | 49.10 V |
| Vmp | 40.84 V |
| Isc | 16.44 A |
| Imp | 15.55 A |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 33 kg |
| Cell Count | 132 |
| Technology | N-Type i-TOPCon Bifacial Dual Glass |
The Trina Solar Vertex N 635W module is engineered for projects where long-term energy production and system efficiency are top priorities. Its high output power and bifacial architecture make it well suited for utility-scale solar farms, commercial rooftops, industrial facilities, and other large photovoltaic installations. For large-scale projects in the UAE, working with an experienced solar panel supplier dubai can help project developers source high-efficiency Trina modules and plan equipment procurement more effectively.
For residential solar installations that combine high-wattage solar panels with battery storage, selecting an inverter with suitable PV input specifications is essential. The spf6000es plus is an example of an off-grid inverter that can be considered for battery-based solar applications. However, when designing a system with Trina Solar 635W modules, installers must calculate the panel string configuration carefully and verify that the total open-circuit voltage, operating current, and PV input power remain within the inverter’s permitted limits. This ensures safe operation and helps prevent inverter overload.
Thanks to its excellent low-light response, strong resistance to moisture, salt mist, sand, and elevated temperatures, this module performs reliably across a wide range of climates. Selecting a properly sized solar inverter and a well-designed mounting system further improves system efficiency, operational stability, and long-term performance. For complete solar energy solutions in the UAE, working with an experienced growatt lithium battery supplier in dubai ensures better compatibility between lithium battery storage systems, inverters, and high-efficiency solar panels. At Pas Solar, we supply genuine Trina Solar panels at competitive prices, helping customers choose the right solution for residential, commercial, and utility-scale solar projects. If you are looking for a trusted Solar Lithium Battery distributor, choosing high-quality lithium storage solutions alongside premium solar panels can significantly improve the efficiency and reliability of your energy system.
This module is ideal for utility-scale solar power plants, commercial and industrial (C&I) projects, ground-mounted PV systems, and other installations that require high energy yield and dependable long-term performance.
The panel offers a maximum module efficiency of 23.5%, allowing higher energy production while making better use of the available installation area.
The dual-glass construction improves mechanical strength, enhances environmental protection, and enables the rear side of the module to capture reflected sunlight, increasing total energy generation under suitable installation conditions.
The module measures 2382 × 1134 × 30 mm and weighs 33 kg, featuring 132 N-Type monocrystalline half-cut cells. What applications is the Trina Solar Vertex N 635W best suited for?
What is the efficiency of the Trina Solar 635W module?
What are the advantages of the bifacial dual-glass design?
What are the dimensions and weight of the Trina Solar Vertex N 635W panel?
