Selecting the right size of cable is one of the most critical factors in the process of designing an efficient and safe solar power system. A small cable can lead to problems such as voltage drops, loss of energy, overheating of the cables, among others. With our Solar Cable Size Calculator, you can easily calculate the correct size of cable to use in your solar panel installation in relation to various parameters. This free online tool is designed to help both consumers and experts select the right size of cable.
| Common Problem | What It Causes | Why It Matters | Simple Solution |
|---|---|---|---|
| Undersized cable | Voltage drop | Reduces system efficiency and power output | Use correct cable size based on current and distance |
| Overheated cables | Heat buildup | Can damage insulation and create fire risk | Choose cable with proper ampacity rating |
| Energy loss in transmission | Power wasted as heat | Increases long-term system cost | Minimize resistance with correct cross-section |
| Incorrect manual estimation | Calculation errors | Leads to unsafe or inefficient design | Use a Solar Cable Size Calculator |
| Ignoring cable length | Higher resistance | System underperforms over distance | Always include total cable run in calculations |
Most people devote much of their time to researching solar panels, batteries, and inverters yet hardly give any thought to the importance of correctly sizing cables. This can be a costly mistake to make.
The efficiency of a solar system depends on its weakest component. The use of quality components in the installation process is of no benefit in cases where cables used in the system have been incorrectly sized and cause losses in terms of voltage drops, losses, overheating, etc. This is precisely when a Solar Cable Size Calculator comes to play.

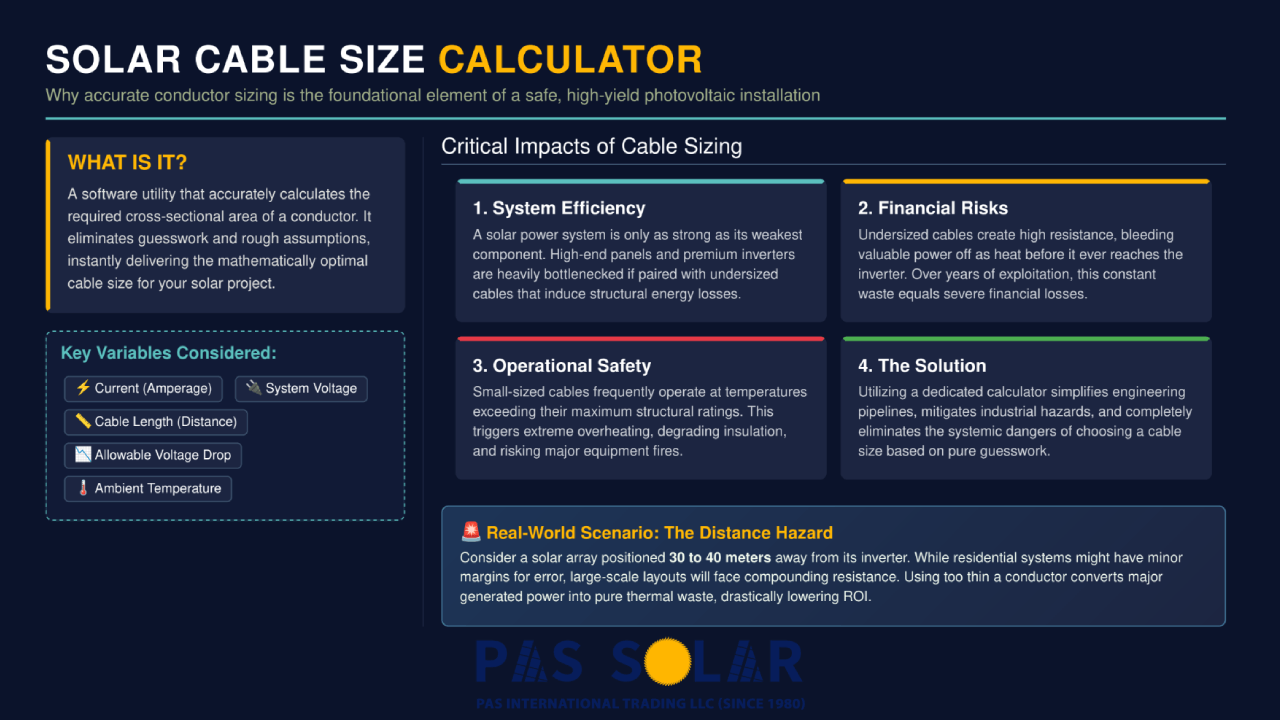

In simple words, a Solar Cable Size Calculator is an application that helps calculate the required cross-section of cable by taking into consideration several variables such as current, voltage, length of cable, allowable voltage drop, and others. The use of such software tools allows avoiding calculations based on rough assumptions and provides the opportunity to get a cable of the optimal size instantly.
The effect that properly selected cable sizes have is most apparent in large-scale projects since residential installations have some margin for errors.
Let’s imagine that we are talking about a solar panel installation positioned 30 or 40 meters away from an inverter. The problem with using a conductor with too small a diameter would be in high resistance that leads to loss of power as heat energy before the power reaches the inverter. This kind of waste of energy might cost you plenty of money after some years of exploitation.
The importance of correct conductor selection also concerns your safety. Small-sized cables might work at temperatures exceeding their rating and, under special conditions, cause overheating that could harm their insulation and other equipment parts.
A correctly set up Solar Cable Size Calculator can simplify your life and eliminate the risks associated with guessing when selecting the right size of the conductor.
Cable size selection does not depend on just one factor. There are several factors, and any modification in one will lead to changes in another.
Table shows some of the factors that influence cable selection.
| Factor | Why It Matters |
|---|---|
| Current (Amps) | Higher current requires larger cables |
| Cable Length | Longer distances increase voltage drop |
| System Voltage | Affects current flow and losses |
| Installation Method | Impacts heat dissipation |
| Ambient Temperature | Higher temperatures reduce cable capacity |
| Voltage Drop Limit | Determines acceptable energy loss |
| Safety Margin | Provides room for future expansion |
Current is generally the first factor taken into consideration when determining the cable size. With higher electrical current, the cable will need to be able to handle the load.
For instance, cables that are good enough for handling 10A solar installation may not be sufficient for a 50A battery connection. The only solution to increase power in a system is to use larger cables.
It should be noted that distance plays a major role.
The same current in one cable might be handled by cables of one size when the run is only 5 meters and cables of another size when it reaches 40 meters. Greater distances mean more resistance and energy losses.
That is why in most cases, installers consider each distance separately.
The higher the system voltage is, the smaller the cables are needed since less current is used to transfer a specific power rating.
In the case of transferring 2,400 watts using 24V, the amount of current will be higher than for transferring 2,400 watts with 48V.
That is why in many modern designs of solar installations, higher voltage batteries and systems are chosen.
It is known that some cables can operate under conditions other than ideal.
There are cables which are placed inside conduits, some of them work outdoors and can be installed on roofs under direct exposure to the sunlight, others may be installed in bundles in cable trays and thus experience heating due to high currents.
All these factors have different influences on cables’ performance.
Solar designers make many decisions during designing the system. One of the most frequent of them concerns determining an allowable voltage drop. The lower voltage drop will be allowed, the larger cable size will have to be used.
The factor of temperature greatly influences the functionality of a cable.
When the environmental temperature increases, the current carrying capacity of the conductor reduces. This is especially significant in areas with bright sunshine and extremely hot summer weather.
This is why professional engineers usually incorporate temperature corrections in the designing process.
There are online calculators for solar cable size calculation, but it is beneficial to know how such calculations are done manually in order to ensure that calculations are correct and make sense.
Solar Cable Size Calculator does these calculations automatically, but knowing the mechanism is highly important.
To begin with, the total power of your circuit should be determined.
Let’s consider the following case:
The electrical current can be calculated by using the simple formula:
Current (A) = Power (W) / Voltage (V)
In our case, we have:
3000 / 48 = 62.5A
Thus, our cable needs to withstand about 62.5 amps.
The next step would be computing the total length of the cable.
The most common error is failing to realize that the current passes through both positive and negative conductors. Depending on the method used to calculate the wire length, the latter may differ.
Accurate measurements are key.
Only a small discrepancy of a couple meters may change the optimal cable diameter.
Solar engineers typically choose minimal voltage drops.
Lowering voltage drops makes the system more efficient by ensuring that electrical equipment is working within its desired parameters.
The selected value will affect the size of the conductor required.
By utilizing current, distance between the source and destination, conductor type, and voltage drop information, the appropriate cable size can be determined using engineering charts or equations.
In many cases, especially for larger projects, most solar cable sizing engineers rely on a Solar Cable Size Calculator due to the complicated nature of the computations involved.
Actual conditions seldom resemble those expected in theory. Allowances must be made when considering future needs, temperature changes, and installation differences.
Selecting a cable size that only just meets the minimum needed can be problematic.
A voltage drop takes place due to the losses that happen while moving electric energy along a wire. The farther the distance and larger the current passing through a wire, the bigger the losses will be. Though a slight voltage drop is natural, high losses may negatively impact the efficiency of a solar system.
Typical results of voltage drop include:
Many system owners are more interested in efficiency of solar panels, Solar Lithium Battery Price, or purchasing solar inverters, but they forget about the importance of the cables. In case of poorly calculated cables, even a top-quality product like a growatt lithium battery will fail to perform at its full capacity.
| Cable Length | Cable Size | Current | Voltage Drop | Power Loss | System Impact |
|---|---|---|---|---|---|
| 10m | 4 mm² | 20A | ~2.1% | Low | Acceptable for small systems |
| 20m | 6 mm² | 25A | ~3.4% | Moderate | Borderline efficiency loss |
| 30m | 6 mm² | 30A | ~5.8% | High | Noticeable inverter inefficiency |
| 40m | 10 mm² | 40A | ~4.2% | Moderate | Acceptable with derating |
| 50m | 10 mm² | 50A | ~6.0% | High | Risk of overheating + losses |
For this reason, designers rely on Solar Cable Size Calculator during planning stage. This way it is possible to make sure that voltage losses will be within reasonable levels and will not affect overall efficiency.
At the same time, for Tier 1 solar products providers such as PAS SOLAR, cable sizing plays an integral part in creation of highly efficient solar installations in residential and commercial areas all around UAE.
Determining the right size of cable is another one of those important details that is often neglected by solar system users initially. While much emphasis is placed on panels, batteries, and inverters, the proper sizing of cables plays an equally crucial role in efficiency, voltage loss, safety, and overall performance. An undersized cable may cause energy loss, overheating, and shortened lifespans of equipment components.
Here is where a Solar Cable Size Calculator proves to be very helpful. Rather than trying to make calculations manually and risking errors, the tool will allow you to find out how large the cross-sectional area of your cable should be according to current, voltage, cable length, and permissible voltage loss.
PV Education has made a calculator that is quite easy to use for both solar industry professionals as well as amateur users. One can provide information regarding length, current capacity, and voltage values. It gives out appropriate recommendations about cable sizes which may be useful for novices in the solar power system installation.
The Renogy solar calculator can help people determine the proper wire size to use during residential solar installation projects. One can determine the wire needed for connecting panels, charge controllers, batteries, and inverters. The calculation is quite easy to comprehend even for non-electrical specialists.
Victron Energy’s Cable Sizing tool is commonly used by those who are installing battery-powered solar panel systems. This software considers the voltage drop and cable losses under various operating scenarios. When dealing with lithium battery systems, it proves particularly useful.
Even though it is not specific to solar systems, Circuit Wizard is commonly used to size up cables in DC electrical setups. Its key advantage is that it allows sizing cables to maintain safe temperature ranges and voltage drop values.
A number of solar equipment manufacturers provide unique calculators for sizing their products. Some of them have built-in sizing of charge controllers, batteries, and inverters. While sizing, say, growatt lithium battery against other equipment, one should use the sizing calculator provided by its manufacturer.
While there are plenty of online calculators to choose from, many solar installation contractors find a simple guide to be very handy to have around. It gives you an easy overview for planning purposes and discussing the project requirements with customers.
These figures are only guidelines, and the cable size is always calculated with a Solar Cable Size Calculator.
| Solar Load (Watts) | System Voltage | Current (Approx.) | Recommended Cable Size |
|---|---|---|---|
| 100W | 12V | 8.3A | 4 mm² |
| 200W | 12V | 16.7A | 6 mm² |
| 400W | 12V | 33.3A | 10 mm² |
| 600W | 24V | 25A | 10 mm² |
| 1000W | 24V | 41.7A | 16 mm² |
| 2000W | 48V | 41.7A | 16 mm² |
| 3000W | 48V | 62.5A | 25 mm² |
| 5000W | 48V | 104A | 35 mm² |
Remember that the length of the cable could make quite an impact on the choice of cables. For example, a 10-meter cable might need a totally different sized cable from a 2-meter cable delivering the same current. This is precisely the reason why professional installers do not use charts alone. Instead, they check their calculations with the help of a Solar Cable Size Calculator before buying anything.
One more thing to think about is your system’s future. After all, many installations begin relatively small but gradually increase.
Frequent errors when sizing solar cables include:
Utilizing Solar Cable Size Calculator software at the planning stage eliminates the above mistakes before their realization.
The selection of the right solar cable is crucial for ensuring that your solar system functions effectively and safely while increasing its efficiency and reliability over the years. Appropriate-sized solar cables will make sure there is no voltage drop, overheating, and that your solar systems function correctly. The high quality of solar cables ensures that the material used will cope with tough weather conditions and last you for years. Even though cable sizing might not seem very important, it directly influences how efficiently you are able to harvest energy.
The required cable size depends on system voltage, current, and cable length. For small residential systems, 4mm² to 10mm² is common, while larger systems may require 16mm² or more. Always calculate using a Solar Cable Size Calculator to ensure accuracy.
Solar cable size is calculated using current, cable length, and allowable voltage drop. First, determine current using Power ÷ Voltage, then account for distance and voltage drop percentage. Finally, select a cable that meets ampacity and safety standards.
Incorrect cable sizing can cause voltage drop, energy loss, overheating, and reduced system efficiency. In severe cases, it can also lead to fire hazards or damage to inverters and batteries.
In most solar PV systems, an acceptable voltage drop is between 1.5% and 3%. Lower voltage drop improves efficiency but requires thicker cables.
Using smaller cables is not recommended. While it may reduce initial cost, it increases long-term energy losses and overheating risks, which can lead to higher overall system costs.
